N-Channel MOSFET, 30V Vds, 8.5mΩ Rds On, 20A Continuous Drain Current. Features 25W Max Power Dissipation, 150°C Max Operating Temperature, and 1.43nF Input Capacitance. Single element configuration with TO-220-3 package, surface mountable. RoHS compliant, supplied in 3000-piece tape and reel packaging.
PackageTO-220-3
MountingSurface Mount
PolarityN-CHANNEL
Power25W
Quick Jump:
Technical Specifications
Onsemi FDMC7696 technical specifications.
General
| Package/Case | TO-220-3 |
| Continuous Drain Current (ID) | 20A |
| Drain to Source Breakdown Voltage | 30V |
| Drain to Source Resistance | 8.5mR |
| Drain to Source Voltage (Vdss) | 30V |
| Element Configuration | Single |
| Fall Time | 2ns |
| Gate to Source Voltage (Vgs) | 20V |
| Height | 0.75mm |
| Input Capacitance | 1.43nF |
| Lead Free | Lead Free |
| Length | 3.3mm |
| Max Operating Temperature | 150°C |
| Min Operating Temperature | -55°C |
| Max Power Dissipation | 25W |
| Mount | Surface Mount |
| Nominal Vgs | 2V |
| Package Quantity | 3000 |
| Packaging | Tape and Reel |
| Polarity | N-CHANNEL |
| Power Dissipation | 25W |
| Radiation Hardening | No |
| Rds On Max | 11.5mR |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | QFET™ |
| Threshold Voltage | 2V |
| Turn-Off Delay Time | 19ns |
| Turn-On Delay Time | 9ns |
| Weight | 0.18g |
| Width | 3.3mm |
Compliance
| RoHS | Compliant |
Datasheet
Onsemi FDMC7696 Datasheet
Download the complete datasheet for Onsemi FDMC7696 to view detailed technical specifications.
No datasheet is available for this part.

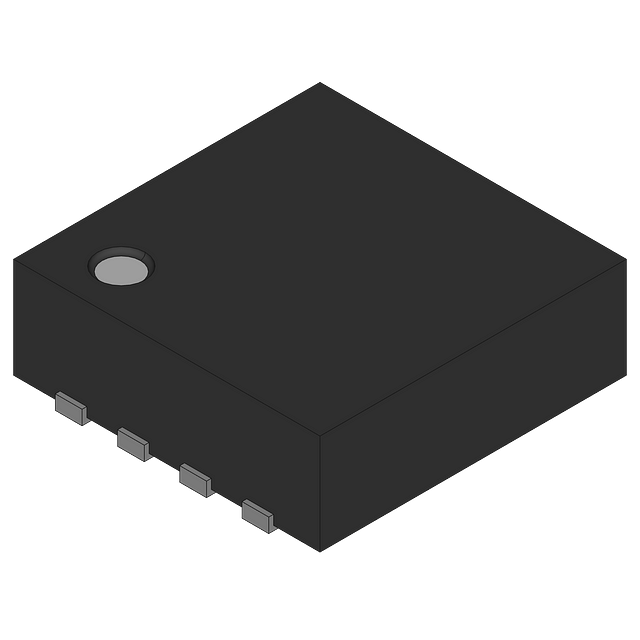

Product Images
