32-bit ARM Cortex-M0+ microcontroller featuring 64KB FLASH memory and 8KB RAM. Operates at up to 48MHz with 25 programmable I/Os. Includes multiple interfaces such as I2C, SPI, UART, USART, LIN, I2S, and HDMI. Equipped with 6 PWM channels, 8 timers/counters, and peripherals including POR, WDT, DMA, and I2C. Packaged in LQFP with dimensions of 7.2mm x 7.2mm x 1.45mm, operating from 2V to 3.6V.
Frequency48MHz
PackageLQFP
Quick Jump:
Technical Specifications
Stmicroelectronics STM32F051K8T6 technical specifications.
General
Package/Case
LQFP
Core Architecture
ARM
Data Bus Width
32b
Frequency
48MHz
Height
1.45mm
Interface
I2C, SPI, HDMI, IrDA, UART, USART, LIN, I2S
Lead Free
Lead Free
Length
7.2mm
Max Frequency
48MHz
Max Operating Temperature
85°C
Max Power Dissipation
357mW
Max Supply Voltage
3.6V
Memory Size
64KB
Memory Type
FLASH,
Min Operating Temperature
-40°C
Min Supply Voltage
2V
Number of ADC Channels
1
Number of Ethernet Channels
1
Number of I/Os
25
Number of I2C Channels
1
Number of Programmable I/O
25
Number of PWM Channels
6
Number of SPI Channels
1
Number of Timers/Counters
8
Oscillator Type
Internal
Package Quantity
1500
Packaging
Tray
Peripherals
POR, PWM, WDT, DMA, I2C
RAM Size
8KB
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
STM32F0
Watchdog Timer
Yes
Width
7.2mm
Compliance
RoHS
Compliant
Datasheet
Stmicroelectronics STM32F051K8T6 Datasheet
Download the complete datasheet for Stmicroelectronics STM32F051K8T6 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

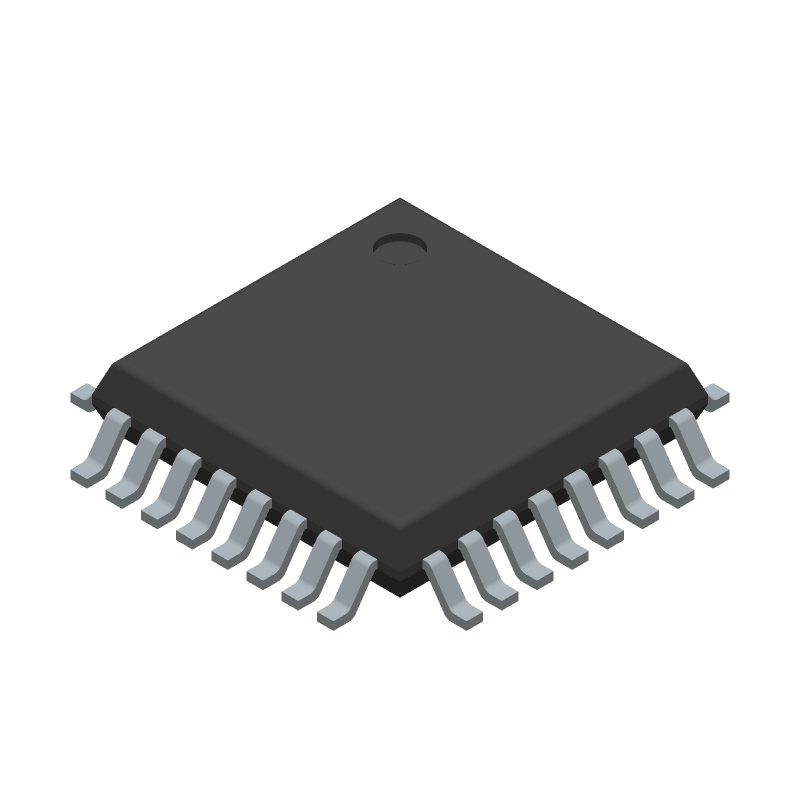

Product Images
