32-bit ARM Cortex-M0 microcontroller featuring 64KB Flash memory and 8KB RAM. Operates at up to 48MHz with 25 programmable I/Os. Includes multiple interfaces such as I2C, SPI, UART, USART, and HDMI, along with 16 ADC channels and 6 PWM channels. Packaged in LQFP, this RoHS compliant component operates from -40°C to 85°C with a supply voltage range of 2V to 3.6V.
Frequency48MHz
PackageLQFP
Quick Jump:
Technical Specifications
Stmicroelectronics STM32F051K8T6TR technical specifications.
General
Package/Case
LQFP
Core Architecture
ARM
Data Bus Width
32b
Frequency
48MHz
Height
1.45mm
Interface
I2C, SPI, HDMI, IrDA, UART, USART, LIN, I2S
Lead Free
Lead Free
Length
7mm
Max Frequency
48MHz
Max Operating Temperature
85°C
Max Supply Voltage
3.6V
Memory Size
64KB
Memory Type
FLASH,
Min Operating Temperature
-40°C
Min Supply Voltage
2V
Number of ADC Channels
16
Number of I/Os
25
Number of I2C Channels
1
Number of Programmable I/O
25
Number of PWM Channels
6
Number of SPI Channels
1
Number of Timers/Counters
8
Oscillator Type
Internal
Package Quantity
2400
Packaging
Tape and Reel
Peripherals
POR, PWM, WDT, DMA
Radiation Hardening
No
RAM Size
8KB
RoHS Compliant
Yes
Series
STM32 F0
Watchdog Timer
Yes
Width
7mm
Compliance
RoHS
Compliant
Datasheet
Stmicroelectronics STM32F051K8T6TR Datasheet
Download the complete datasheet for Stmicroelectronics STM32F051K8T6TR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

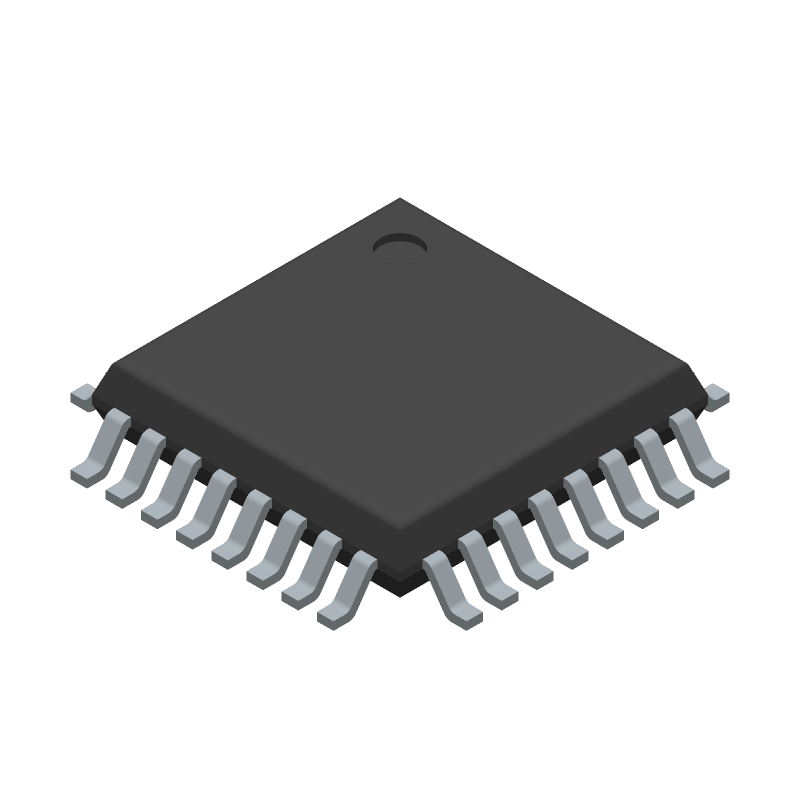

Product Images
