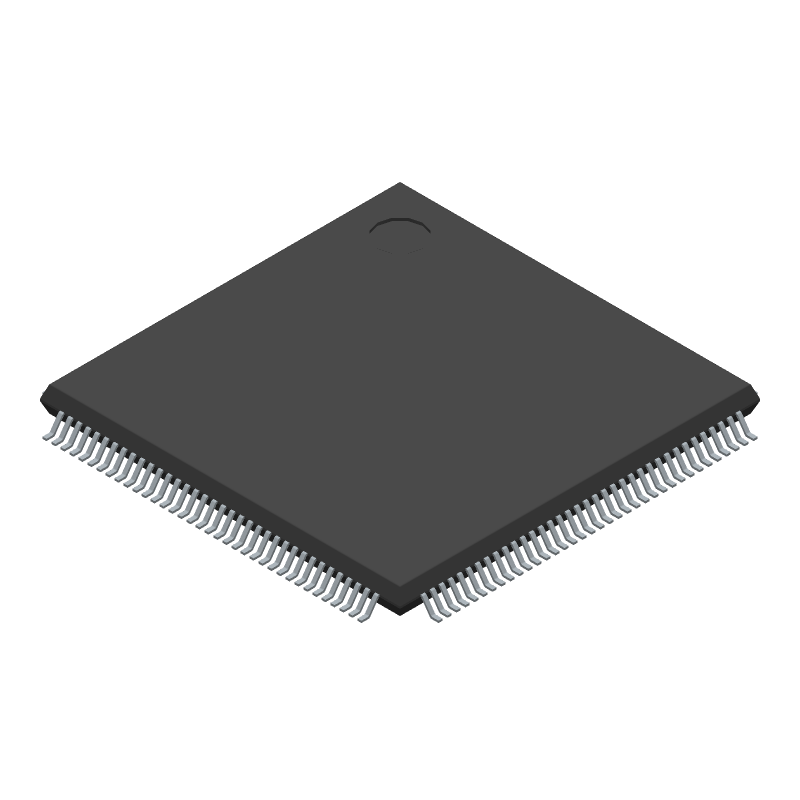

32-bit RISC microcontroller featuring an Arm Cortex-M3 core operating at up to 120 MHz, enhanced by an ART Accelerator for improved performance. This industrial-grade MCU offers 512 Kbytes of FLASH memory and 131072 bytes of RAM, with 114 I/O lines and extensive peripherals including PWM, ADC, DAC, and DMA channels. Housed in a 144-terminal S-PQFP-G144 package, it operates within a temperature range of -40°C to 105°C and supports supply voltages from 1.8V to 3.6V.
Frequency120
Quick Jump:
Technical Specifications
Stmicroelectronics STM32F205ZET7TR technical specifications.
General
Max Operating Temperature
105
Number of Terminals
144
Min Operating Temperature
-40
Terminal Position
QUAD
JEDEC Package Code
S-PQFP-G144
Width
20
Length
20
Pin Count
144
Temperature Grade
INDUSTRIAL
Supply Current-Max
93
Supply Voltage-Min
1.8
Supply Voltage-Max
3.6
Clock Frequency-Max
16
uPs/uCs/Peripheral ICs Type
MICROCONTROLLER, RISC
Number of I/O Lines
114
External Data Bus Width
32
Address Bus Width
24
Bit Size
32
Speed
120
ROM Programmability
FLASH
ROM (words)
32768
RAM (bytes)
131072
PWM Channels
YES
Has ADC
YES
DMA Channels
YES
DAC Channels
YES
Compliance
Eccn Code
3A991.A.2
HTS Code
8542.31.00.01
REACH
Compliant
Military Spec
False
