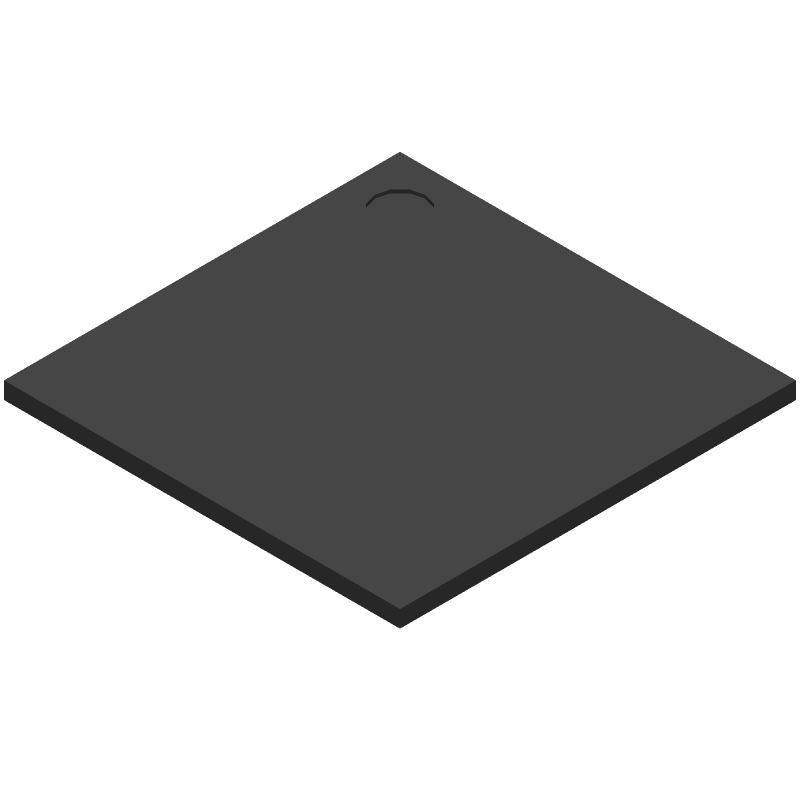

32-bit ARM Cortex-M4 microcontroller featuring a 100 MHz CPU, 512 KB Flash memory, and 262 KB RAM. This RISC microcontroller offers a maximum clock frequency of 26 MHz, 81 I/O lines, and a 32-bit address bus. Includes Art Accelerator, DSP with FPU, and DFSDM capabilities. Operates within an industrial temperature range of -40°C to 85°C, with a supply voltage range of 1.7V to 3.6V. Housed in a 100-terminal S-PBGA-B100 package.
Frequency100
Quick Jump:
Technical Specifications
Stmicroelectronics STM32F412VEH6 technical specifications.
General
Max Operating Temperature
85
Number of Terminals
100
Min Operating Temperature
-40
Terminal Position
BOTTOM
JEDEC Package Code
S-PBGA-B100
Width
7
Length
7
Temperature Grade
INDUSTRIAL
Supply Current-Max
30.84
Supply Voltage-Nom
3.3
Supply Voltage-Min
1.7
Supply Voltage-Max
3.6
Clock Frequency-Max
26
uPs/uCs/Peripheral ICs Type
MICROCONTROLLER, RISC
Number of I/O Lines
81
External Data Bus Width
16
Address Bus Width
32
Bit Size
32
Speed
100
ROM Programmability
FLASH
ROM (words)
524288
RAM (bytes)
262144
PWM Channels
YES
Has ADC
YES
DMA Channels
YES
DAC Channels
NO
Compliance
Eccn Code
3A991.A.2
REACH
Compliant
Military Spec
False
