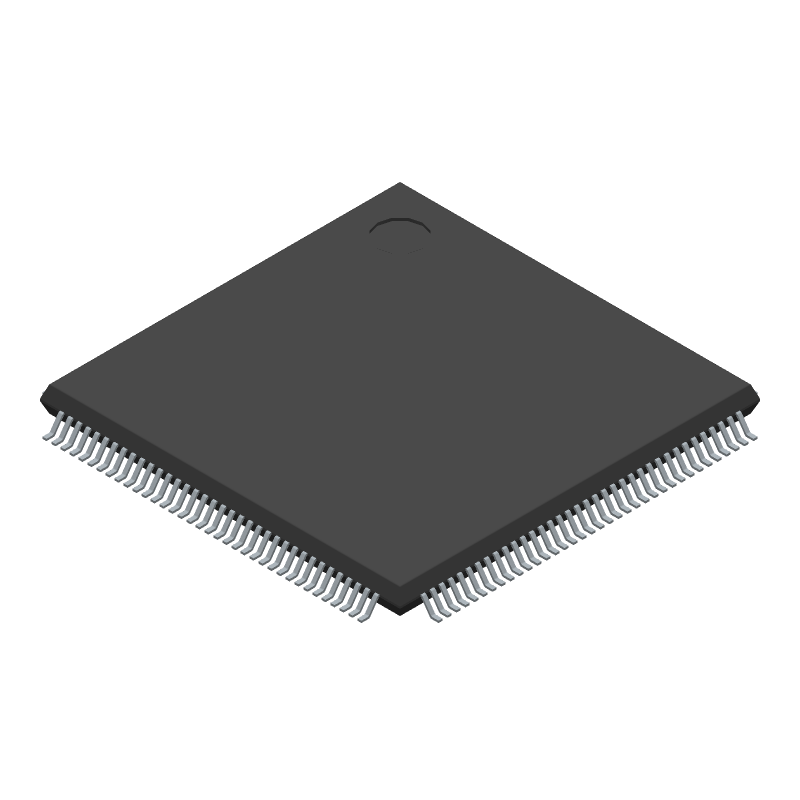

High-performance 32-bit RISC microcontroller featuring an Arm Cortex-M4 core operating at up to 100 MHz. This MCU offers 512 KB of FLASH memory and 262 KB of RAM, with an Art Accelerator for enhanced performance. It includes 114 I/O lines, a 32-bit address bus, and a 16-bit external data bus. Designed for industrial applications, it operates within a temperature range of -40°C to 85°C and supports PWM channels, ADC, and DMA. The component is housed in a 144-terminal S-PQFP-G144 package.
Frequency100
Quick Jump:
Technical Specifications
Stmicroelectronics STM32F412ZET6 technical specifications.
General
Max Operating Temperature
85
Number of Terminals
144
Min Operating Temperature
-40
Terminal Position
QUAD
JEDEC Package Code
S-PQFP-G144
Width
20
Length
20
Temperature Grade
INDUSTRIAL
Supply Current-Max
30.84
Supply Voltage-Nom
3.3
Supply Voltage-Min
1.7
Supply Voltage-Max
3.6
Clock Frequency-Max
26
uPs/uCs/Peripheral ICs Type
MICROCONTROLLER, RISC
Number of I/O Lines
114
External Data Bus Width
16
Address Bus Width
32
Bit Size
32
Speed
100
ROM Programmability
FLASH
ROM (words)
524288
RAM (bytes)
262144
PWM Channels
YES
Has ADC
YES
DMA Channels
YES
DAC Channels
NO
Compliance
Eccn Code
3A991.A.2
REACH
Compliant
Military Spec
False
