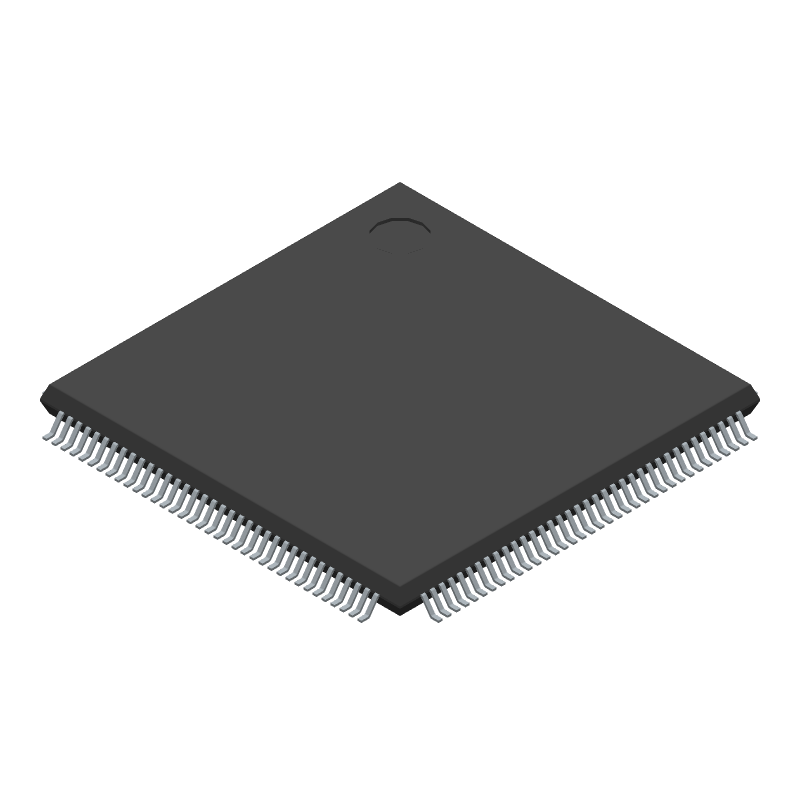

32-bit ARM Cortex-M4 microcontroller featuring a 180MHz CPU with DSP and FPU capabilities. This advanced line MCU offers 2MB of FLASH memory and 256KB of RAM, enhanced by ART Accelerator and Chrom-ART Accelerator. Integrated peripherals include multiple I2C, SPI, UART, and USB interfaces, along with Ethernet, CAN, SDIO, and I2S support. The component boasts 114 programmable I/Os, 14 timers, 3 ADCs with 24 channels, and 2 DACs, all within a LQFP package.
Frequency180MHz
PackageLQFP
Quick Jump:
Technical Specifications
Stmicroelectronics STM32F439ZIT6 technical specifications.
General
Package/Case
LQFP
Core Architecture
ARM
Data Bus Width
32b
Frequency
180MHz
Height
1.4mm
Interface
I2C, SPI, USB, Ethernet, IrDA, UART, USART, EBI/EMI, CAN, SDIO, LIN, I2S
Lead Free
Lead Free
Length
20mm
Max Frequency
180MHz
Max Operating Temperature
85°C
Max Power Dissipation
500mW
Max Supply Voltage
3.6V
Memory Size
2MB
Memory Type
FLASH,
Min Operating Temperature
-40°C
Min Supply Voltage
1.8V
Nominal Supply Current
1.7uA
Number of A/D Converters
3
Number of ADC Channels
24
Number of Channels
24
Number of D/A Converters
2
Number of Ethernet Channels
1
Number of I/Os
114
Number of I2C Channels
3
Number of Programmable I/O
114
Number of SPI Channels
3
Number of Timers/Counters
14
Number of UART Channels
4
Number of USB Channels
2
Oscillator Type
Internal
Package Quantity
60
Packaging
Tray
Peripherals
Brown-out Detect/Reset, POR, PWM, WDT, DMA, LCD
Radiation Hardening
No
RAM Size
256KB
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
STM32F4
Watchdog Timer
Yes
Width
20mm
Compliance
RoHS
Compliant
