High brightness LED emitter, LUXEON R Series, featuring a 120° viewing angle and 200 lumens luminous flux. This cool white LED operates at a forward current of 700mA with a maximum rating of 1A, delivering 5700K correlated color temperature and a CRI of 70. Packaged in a 1812 (4532 metric) surface mount case, it offers a wide operating temperature range from -40°C to 135°C and is RoHS compliant.
Package1812
MountingSurface Mount
Quick Jump:
Technical Specifications
Philips LXA7-PW57 technical specifications.
General
| Case Code (Imperial) | 1812 |
| Case Code (Metric) | 4532 |
| Package/Case | 1812 |
| Color | White |
| Color Rendering Index (CRI) | 70 |
| Correlated Color Temperature (CCT) | 5700K |
| Forward Current | 700mA |
| Height | 1.98mm |
| Illumination Color | White |
| Lead Free | Lead Free |
| Length | 4.49mm |
| Lens Color | White |
| Lens Style | Dome, Circular, Round |
| Luminous Flux | 200lm |
| Max Current Rating | 1A |
| Max Operating Temperature | 135°C |
| Min Operating Temperature | -40°C |
| Mount | Surface Mount |
| Number of LEDs | 1 |
| Package Quantity | 1000 |
| Packaging | Tape and Reel |
| RoHS Compliant | Yes |
| Series | LUXEON R |
| Thermal Resistance of Package | 6°C/W |
| Viewing Angle | 120° |
| Width | 3.05mm |
Compliance
| RoHS | Compliant |
Datasheet
Philips LXA7-PW57 Datasheet
Download the complete datasheet for Philips LXA7-PW57 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

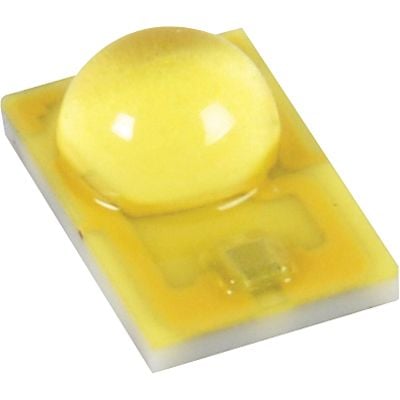

Product Images
