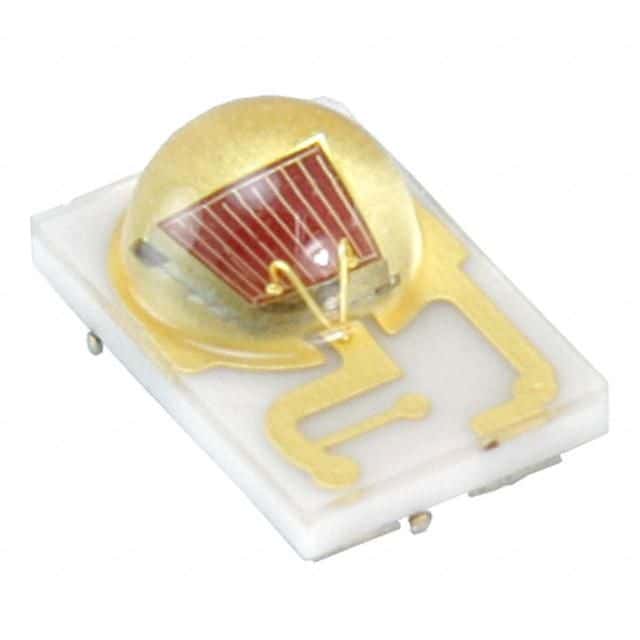

High brightness red LED, LUXEON Rebel Color series, emitting at 627nm with a luminous flux of 50lm at 350mA forward current. Features a 125° viewing angle and a dome, circular lens style. Packaged in an 1812 (4532 metric) SMD/SMT case, this component supports surface mounting and operates within a temperature range of -40°C to 120°C. RoHS compliant and lead-free, it offers a maximum current rating of 700mA and a thermal resistance of 8°C/W.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Philips LXM2-PD01-0050 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Philips LXM2-PD01-0050 technical specifications.
| Case Code (Imperial) | 1812 |
| Case Code (Metric) | 4532 |
| Package/Case | SMD/SMT |
| Color | Red |
| Forward Current | 350mA |
| Height | 2.1mm |
| Illumination Color | Red |
| Lead Free | Lead Free |
| Length | 4.91mm |
| Lens Color | Red |
| Lens Style | Dome, Circular, Round |
| Luminous Flux | 50lm |
| Max Current Rating | 700mA |
| Max Operating Temperature | 120°C |
| Min Operating Temperature | -40°C |
| Mount | Surface Mount |
| Number of LEDs | 1 |
| Package Quantity | 1000 |
| Packaging | Cut Tape |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | LUXEON Rebel Color |
| Test Temperature | 25°C |
| Thermal Resistance of Package | 8°C/W |
| Viewing Angle | 125° |
| Wavelength | 627nm |
| Width | 3.17mm |
| RoHS | Compliant |
