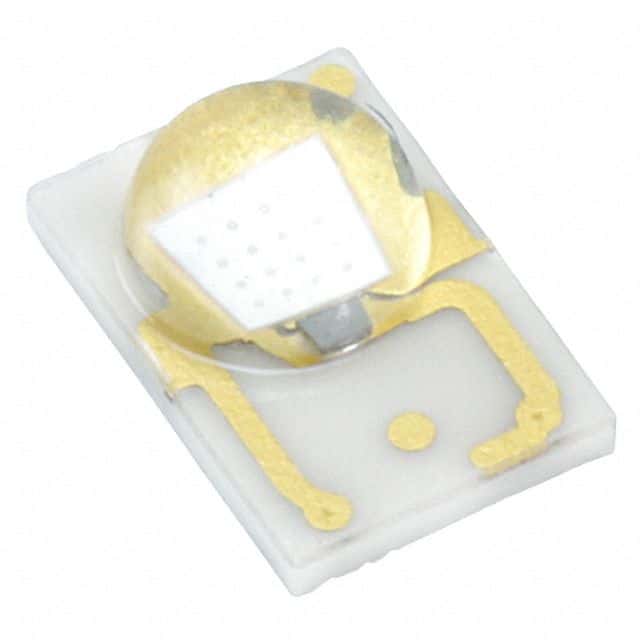

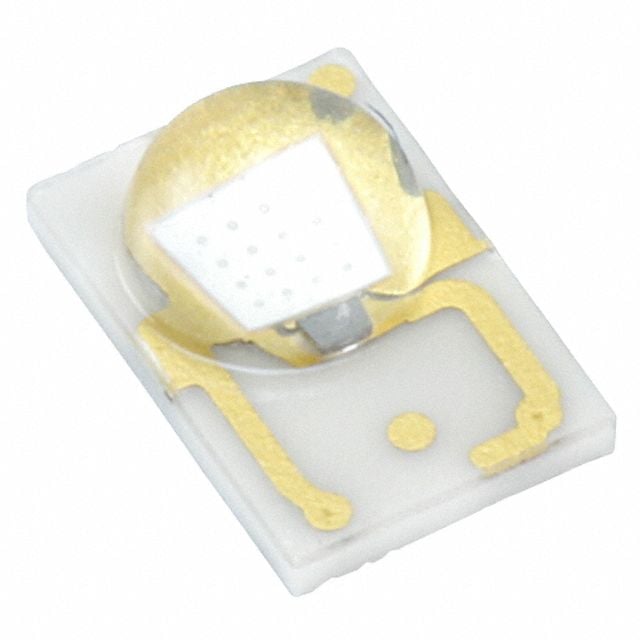

Surface mountable blue LED emitter with a 125° viewing angle, designed for general illumination. Features a 447.5nm wavelength and a forward current of 350mA, with a maximum rating of 1A. Housed in a 1812 (4532) SMD/SMT package, this RoHS compliant component operates between -40°C and 135°C. The dome, circular lens style and 3V forward voltage make it suitable for various lighting applications.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Philips LXML-PR01-0500 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Philips LXML-PR01-0500 technical specifications.
| Case Code (Imperial) | 1812 |
| Case Code (Metric) | 4532 |
| Package/Case | SMD/SMT |
| Color | Blue |
| Forward Current | 350mA |
| Height | 2.1mm |
| Illumination Color | Blue |
| Lead Free | Lead Free |
| Length | 4.91mm |
| Lens Color | Blue |
| Lens Style | Dome, Circular, Round |
| Max Current Rating | 1A |
| Max Operating Temperature | 135°C |
| Min Operating Temperature | -40°C |
| Mount | Surface Mount |
| Number of LEDs | 1 |
| Package Quantity | 1000 |
| Packaging | Cut Tape |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | LUXEON Rebel Color |
| Test Temperature | 25°C |
| Thermal Resistance of Package | 10°C/W |
| Viewing Angle | 125° |
| Voltage | 3V |
| Wavelength | 447.5nm |
| Width | 3.17mm |
| RoHS | Compliant |
