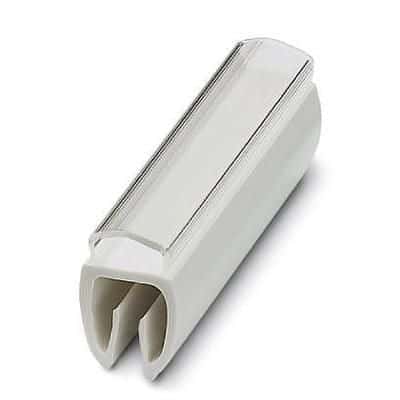

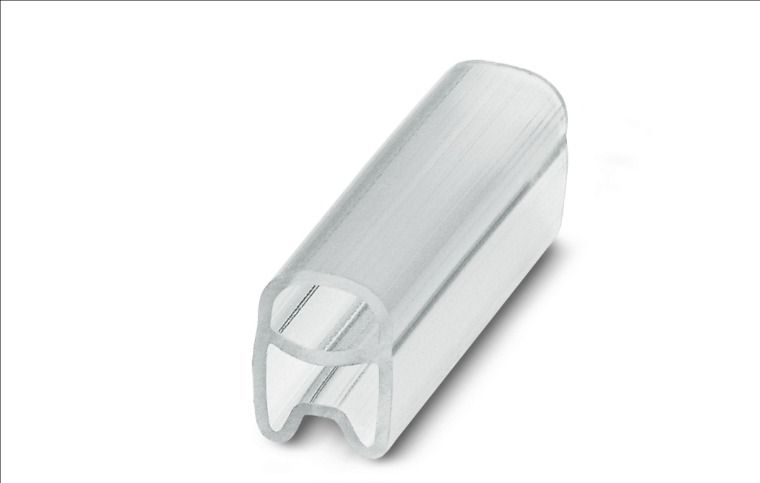

Conductor marker carrier, transparent, unlabeled, mounting type slide on, cable diameter range 1.5 . 2.5 mm,lettering field size 15 x 4 mm
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Phoenix Contact 1013025 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Color | Clear, White |
| Depth | 15mm |
| Lead Free | Lead Free |
| Material | PVC, Poly, Vinyl, Polyvinyl |
| Max Operating Temperature | 80°C |
| Min Operating Temperature | -50°C |
| Mount | Cable |
| Package Quantity | 1000 |
| Packaging | Bulk |
| RoHS Compliant | Yes |
| Series | CLIPLINE PATG |
| Size | 4mm |
| Weight | 0.010582oz |
| Width | 0.59inch |
| Wire/Cable Diameter | 2.5mm |
| RoHS | Compliant |
