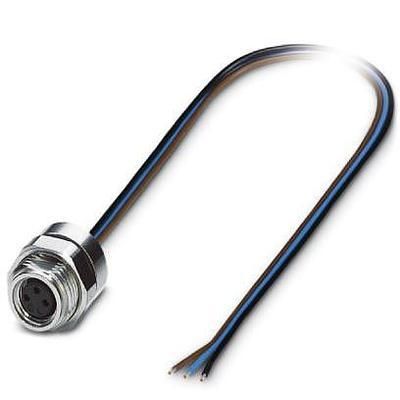

Sensor/actuator flush-type socket, 3-position M8 connector with female receptacle and wire leads. Features copper/tin conductor material and CU alloy contacts, rated for 4A and 60V. This panel-mount assembly offers IP67, waterproof, and dust-tight protection, with EAC approval and RoHS compliance.
Voltage Rating60V
Current Rating4A
MountingPanel
Quick Jump:
Technical Specifications
Phoenix Contact 1453449 technical specifications.
General
| Approvals | EAC |
| Color | Multiple |
| Conductor Material | Copper, Tin |
| Connector Type A | Receptacle, Circular |
| Connector Type B | Wire Leads |
| Contact Material | CU ALLOY |
| Current Rating | 4A |
| Gender | Female |
| Mount | Panel |
| Number of Contacts | 3 |
| Number of Positions | 3 |
| Package Quantity | 1 |
| Packaging | Bulk |
| Ratings | IP67, Waterproof, Dust Tight |
| RoHS Compliant | Yes |
| Shielding | Unshielded |
| Voltage Rating | 60V |
| Weight | 0.634931oz |
| Wire/Cable Type | Individual |
Compliance
| RoHS | Compliant |
Datasheet
Phoenix Contact 1453449 Datasheet
Download the complete datasheet for Phoenix Contact 1453449 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.
