Voltage Rating30V
Current Rating4A
MountingPanel
Quick Jump:
Technical Specifications
Phoenix Contact 1500347 technical specifications.
General
| Color | Multiple |
| Connector Type A | Receptacle |
| Connector Type B | Wire Leads |
| Current Rating | 4A |
| Lead Free | Lead Free |
| Length | 0.5m |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -25°C |
| Mount | Panel |
| Number of Contacts | 4 |
| Number of Positions | 4 |
| Ratings | IP67, Waterproof, Dust Tight |
| RoHS Compliant | Yes |
| Shielding | Unshielded |
| Voltage Rating | 30V |
| Weight | 0.437397oz |
| Wire/Cable Gauge | 24AWG |
| Wire/Cable Type | Individual |
Compliance
| RoHS | Compliant |
Datasheet
Phoenix Contact 1500347 Datasheet
Download the complete datasheet for Phoenix Contact 1500347 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

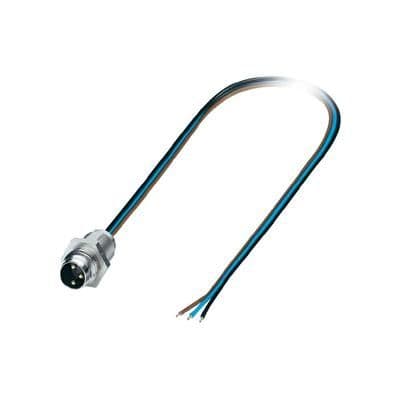

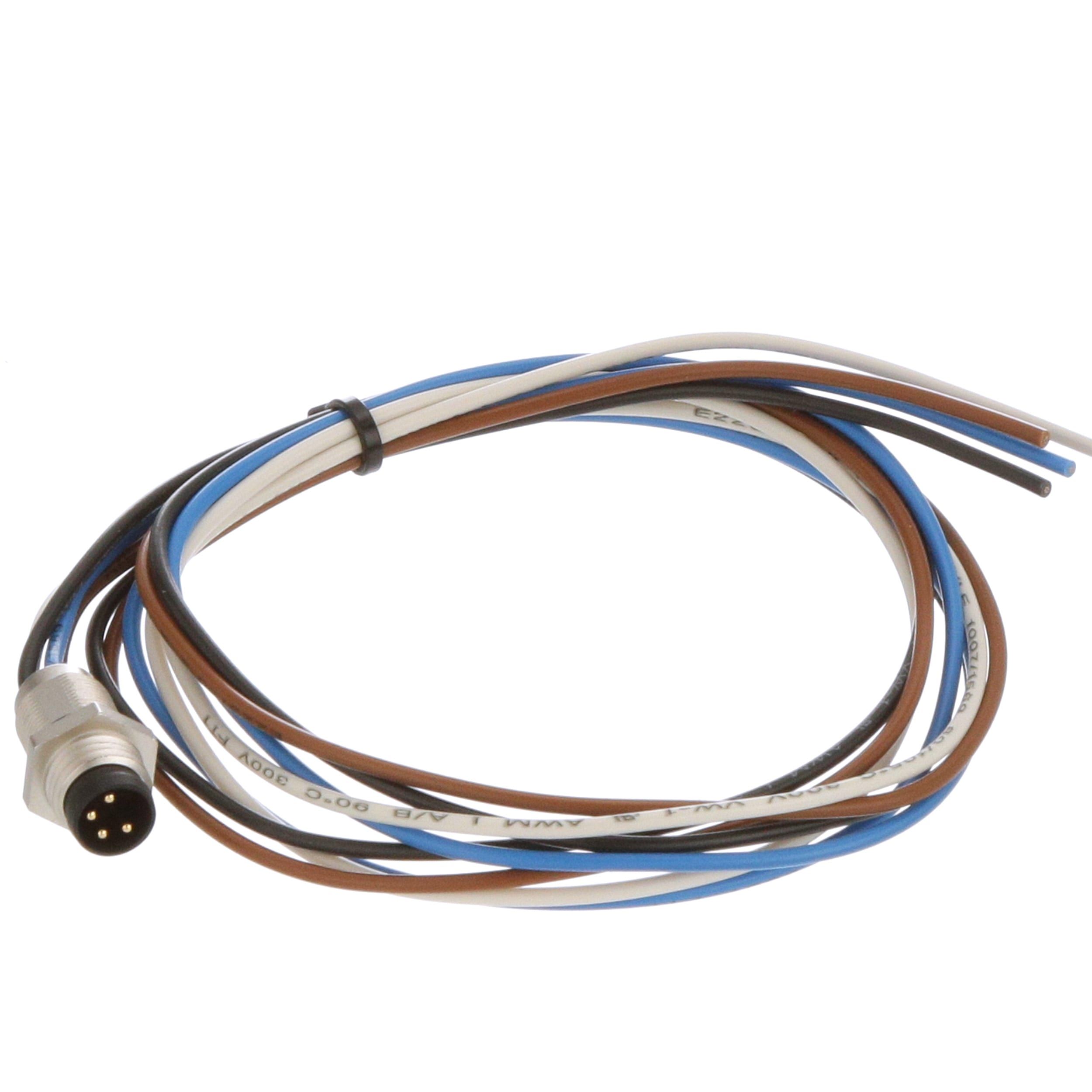

Product Images
