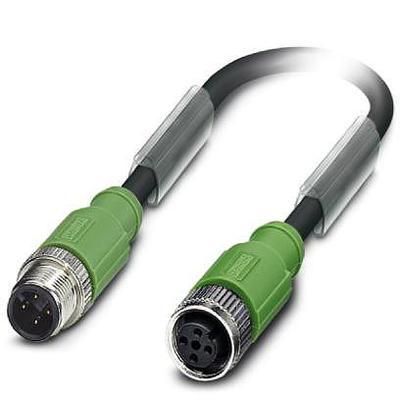

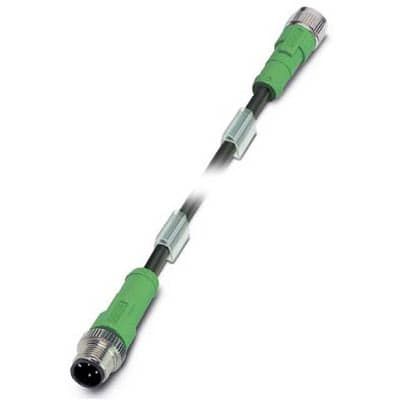

This Phoenix Contact cable assembly features a receptacle M12 connector on one end and a plug M12 connector on the other, with a 4-conductor, 22AWG round wire and a length of 9.84 feet. It is rated for 250V and 4A, and is shielded for electromagnetic interference protection. The assembly is made of PUR jacket material and is rated for IP65, waterproof, water resistant, and dust tight. It is also RoHS compliant and has approvals from UL and EAC.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Phoenix Contact 1500871 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Phoenix Contact 1500871 technical specifications.
| Approvals | UL, EAC |
| Color | Grey, Black |
| Connector Type A | Receptacle, M12, Plug |
| Connector Type B | Plug, M12 |
| Contact Plating | Gold |
| Current Rating | 4A |
| Gender | Male to Female |
| Jacket Material | PUR |
| Length | 9.84foot |
| Mount | Free Hanging |
| Number of Conductors | 4 |
| Number of Contacts | 4 |
| Package Quantity | 1 |
| Ratings | IP65, Waterproof, Water Resistant, Dust Tight |
| RoHS Compliant | Yes |
| Shielding | Shielded |
| Voltage Rating | 250V |
| Weight | 6oz |
| Wire/Cable Gauge | 22AWG |
| Wire/Cable Type | Round |
| RoHS | Compliant |
Download the complete datasheet for Phoenix Contact 1500871 to view detailed technical specifications.
