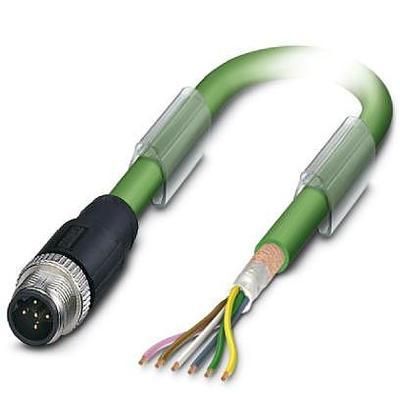

This Phoenix Contact cable assembly features a 5-conductor, shielded design with a gold-plated M12 receptacle and wire leads. It is rated for 60V and has a 24AWG wire gauge. The assembly is 5 meters in length and is designed for free-hanging applications. It meets IP65, waterproof, and water-resistant ratings, and is compliant with RoHS regulations. The cable is shielded for electromagnetic interference protection.
Voltage Rating60V
MountingFree Hanging
Quick Jump:
Technical Specifications
Phoenix Contact 1507078 technical specifications.
General
| Color | Green |
| Connector Type A | Receptacle, M12, B |
| Connector Type B | Wire Leads |
| Contact Plating | Gold |
| Gender | Male |
| Length | 5m |
| Mount | Free Hanging |
| Number of Conductors | 5 |
| Ratings | IP65, Waterproof, Water Resistant, Dust Tight |
| RoHS Compliant | Yes |
| Shielding | Shielded |
| Voltage Rating | 60V |
| Weight | 13.044311oz |
| Wire/Cable Gauge | 24AWG |
| Wire/Cable Type | Round |
Compliance
| RoHS | Compliant |
Datasheet
Phoenix Contact 1507078 Datasheet
Download the complete datasheet for Phoenix Contact 1507078 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.
Product Images
