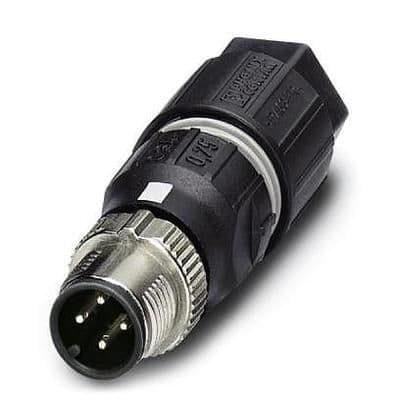

Circular connector, male plug, 4 contacts, straight orientation, free hanging/cable mount. Features gold-plated copper alloy contacts, zinc die cast shell with nickel finish, and metal housing. Rated for 4A, 250V, operating temperature range of -25°C to 80°C, and IP65 protection. RoHS compliant, UL recognized, and EAC certified.
PackageMetal
Voltage Rating250V
Current Rating4A
MountingFree Hanging, Cable
Quick Jump:
Technical Specifications
Phoenix Contact 1521591 technical specifications.
General
| Approvals | UL, EAC |
| Package/Case | Metal |
| Color | Black, Silver |
| Contact Finish - Mating | GOLD |
| Contact Gender | Male |
| Contact Material | Copper, Tin, Bronze |
| Contact Plating | Gold |
| Current Rating | 4A |
| Flammability Rating | UL94 V-0 |
| Gender | Male |
| Lead Free | Lead Free |
| Max Current Rating | 4A |
| Max Operating Temperature | 80°C |
| Min Operating Temperature | -25°C |
| Mount | Free Hanging, Cable |
| Number of Contacts | 4 |
| Number of Ports | 1 |
| Number of Positions | 4 |
| Orientation | Straight |
| Package Quantity | 1 |
| Packaging | Bulk |
| Plating | Polyamide |
| Ratings | IP65, Waterproof, Water Resistant, Dust Tight |
| RoHS Compliant | Yes |
| Series | SACC |
| Shell Finish | Nickel |
| Shell Material | ZINC DIE CAST |
| Termination | IDC |
| Voltage Rating | 250V |
| Weight | 0.529109oz |
Compliance
| RoHS | Compliant |
