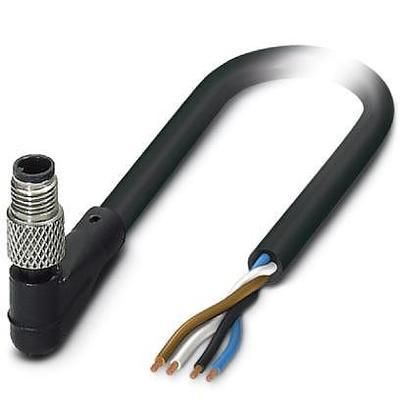

Sensor/actuator cable assembly featuring a 4-position, M5 circular male receptacle with gold-plated brass contacts and a free conductor end. This black, round, unshielded cable is constructed with copper conductors and PVC insulation, rated for 125V and 1A, with an operating temperature range of -5°C to 80°C. The 5-meter cable assembly is IP65 rated, waterproof, water-resistant, and dust-tight, with 26AWG conductors each comprising 18 strands.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Phoenix Contact 1530401 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Phoenix Contact 1530401 technical specifications.
| Color | Black |
| Conductor Material | Copper |
| Connector Type A | Receptacle, M5, Circular |
| Connector Type B | Wire Leads |
| Contact Material | Brass |
| Contact Plating | Gold |
| Current Rating | 1A |
| Gender | Male |
| Halogen Free | Not Halogen Free |
| Insulation Material | PVC |
| Length | 5m |
| Max Current Rating | 1A |
| Max Operating Temperature | 80°C |
| Min Operating Temperature | -5°C |
| Mount | Free Hanging |
| Number of Conductors | 4 |
| Number of Cores | 4 |
| Number of Strands | 18 |
| Ratings | IP65, Waterproof, Water Resistant, Dust Tight |
| RoHS Compliant | Yes |
| Shielding | Unshielded |
| Voltage Rating | 125V |
| Weight | 3.125273oz |
| Wire/Cable Gauge | 26AWG |
| Wire/Cable Type | Round |
| RoHS | Compliant |
