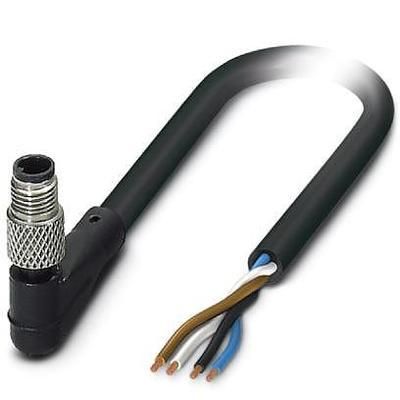

Sensor/actuator cable assembly featuring a 4-position, M5 circular receptacle with gold-plated brass contacts and a free conductor end. This 10-meter, round, black cable utilizes copper conductors with 18 strands each, 26AWG gauge, and PVC insulation. Rated for 1A at 125V, it operates between -5°C and 80°C and offers IP65, waterproof, water-resistant, and dust-tight protection.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Phoenix Contact 1530414 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Phoenix Contact 1530414 technical specifications.
| Color | Black |
| Conductor Material | Copper |
| Connector Type A | Receptacle, M5, Circular |
| Connector Type B | Wire Leads |
| Contact Material | Brass |
| Contact Plating | Gold |
| Current Rating | 1A |
| Gender | Male |
| Halogen Free | Not Halogen Free |
| Insulation Material | PVC |
| Length | 10m |
| Max Current Rating | 1A |
| Max Operating Temperature | 80°C |
| Min Operating Temperature | -5°C |
| Mount | Free Hanging |
| Number of Conductors | 4 |
| Number of Cores | 4 |
| Number of Strands | 18 |
| Ratings | IP65, Waterproof, Water Resistant, Dust Tight |
| RoHS Compliant | Yes |
| Shielding | Unshielded |
| Voltage Rating | 125V |
| Weight | 6.208217oz |
| Wire/Cable Gauge | 26AWG |
| Wire/Cable Type | Round |
| RoHS | Compliant |
