Phoenix Contact
1668098

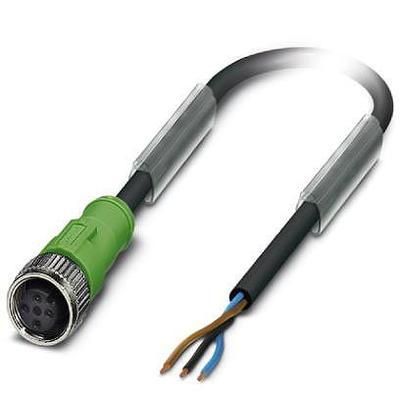

Sensor/actuator cable, 3-position, PUR halogen-free, black-gray RAL 7021, free cable end, on Socket straightM12, A-coded, PIN 2+4 bridged, cable length 5 m
MountingFree Hanging
Quick Jump:
Technical Specifications
Phoenix Contact 1668098 technical specifications.
General
| Approvals | UL, EAC, IEC |
| Color | Black, Grey |
| Conductor Material | Copper |
| Connector Type A | Plug, M12 |
| Connector Type B | Wire Leads |
| Contact Material | CuSn |
| Contact Plating | Gold |
| Gender | Female |
| Length | 5m |
| Mount | Free Hanging |
| Number of Contacts | 3 |
| Number of Positions | 3 |
| Packaging | Bulk |
| Ratings | IP65, Waterproof, Water Resistant, Dust Tight, IP68 |
| RoHS Compliant | Yes |
| Shielding | Unshielded |
| Weight | 4.867807oz |
| Wire/Cable Type | Round |
Compliance
| RoHS | Compliant |
Datasheet
Phoenix Contact 1668098 Datasheet
Download the complete datasheet for Phoenix Contact 1668098 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.
Product Images
