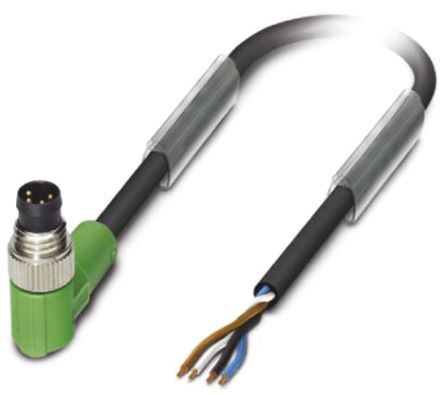

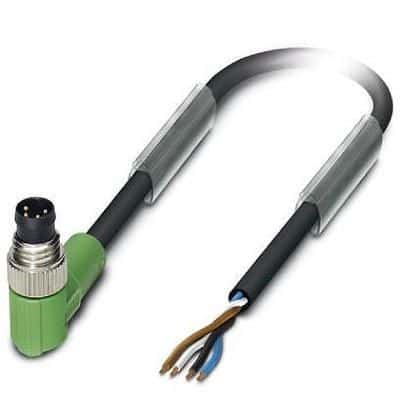

Sensor/actuator cable assembly featuring a 4-position, M8 angled male plug on one end and a free cable end on the other. The 1.5-meter (4.92 ft) cable utilizes a black-gray (RAL 7021) PUR, halogen-free jacket. Conductors are copper with 32 strands per 24AWG wire, offering a 4A current rating and 30V voltage rating. Contacts are bronze with gold plating, suitable for operation between -5°C and 80°C.
Voltage Rating30V
Current Rating4A
Quick Jump:
Technical Specifications
Phoenix Contact 1681813 technical specifications.
General
| Color | Black, Grey |
| Conductor Material | Copper |
| Connector Type A | Circular |
| Contact Material | Bronze |
| Contact Plating | Gold |
| Current Rating | 4A |
| Gender | Male |
| Halogen Free | Halogen Free |
| Jacket Material | PUR |
| Length | 4.92foot |
| Max Current Rating | 4A |
| Max Operating Temperature | 80°C |
| Min Operating Temperature | -5°C |
| Number of Conductors | 4 |
| Number of Contacts | 4 |
| Number of Cores | 4 |
| Number of Strands | 32 |
| Package Quantity | 1 |
| Packaging | Bulk |
| RoHS Compliant | Yes |
| Shielding | Unshielded |
| Voltage Rating | 30V |
| Weight | 1.573219oz |
| Wire/Cable Gauge | 24AWG |
| Wire/Cable Type | Round |
Compliance
| RoHS | Compliant |
Datasheet
Phoenix Contact 1681813 Datasheet
Download the complete datasheet for Phoenix Contact 1681813 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.
Product Images
