Circular M12 plug to wire leads interconnection device, featuring a female connector with 4 contacts and 4 conductors. This black, free-hanging device offers a 4A current rating and 320V voltage rating, with bronze contacts plated in gold. Rated IP65 for waterproof, water-resistant, and dust-tight protection, it operates between -25°C and 90°C and is lead-free and RoHS compliant. The 10m length utilizes 22AWG round wire.
Voltage Rating320V
Current Rating4A
MountingFree Hanging
Quick Jump:
Technical Specifications
Phoenix Contact 1683002 technical specifications.
General
Color
Black
Connector Type A
Plug, M12, Circular
Connector Type B
Wire Leads
Contact Material
Bronze
Contact Plating
Gold
Current Rating
4A
Gender
Female
Lead Free
Lead Free
Length
10m
Max Current Rating
4A
Max Operating Temperature
90°C
Min Operating Temperature
-25°C
Mount
Free Hanging
Number of Conductors
4
Number of Contacts
4
Packaging
Bulk
Ratings
IP65, Waterproof, Water Resistant, Dust Tight
RoHS Compliant
Yes
Shielding
Unshielded
Voltage Rating
320V
DC Rated Voltage
320V
Weight
10.582189oz
Wire/Cable Gauge
22AWG
Wire/Cable Type
Round
Compliance
RoHS
Compliant
Datasheet
Phoenix Contact 1683002 Datasheet
Download the complete datasheet for Phoenix Contact 1683002 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

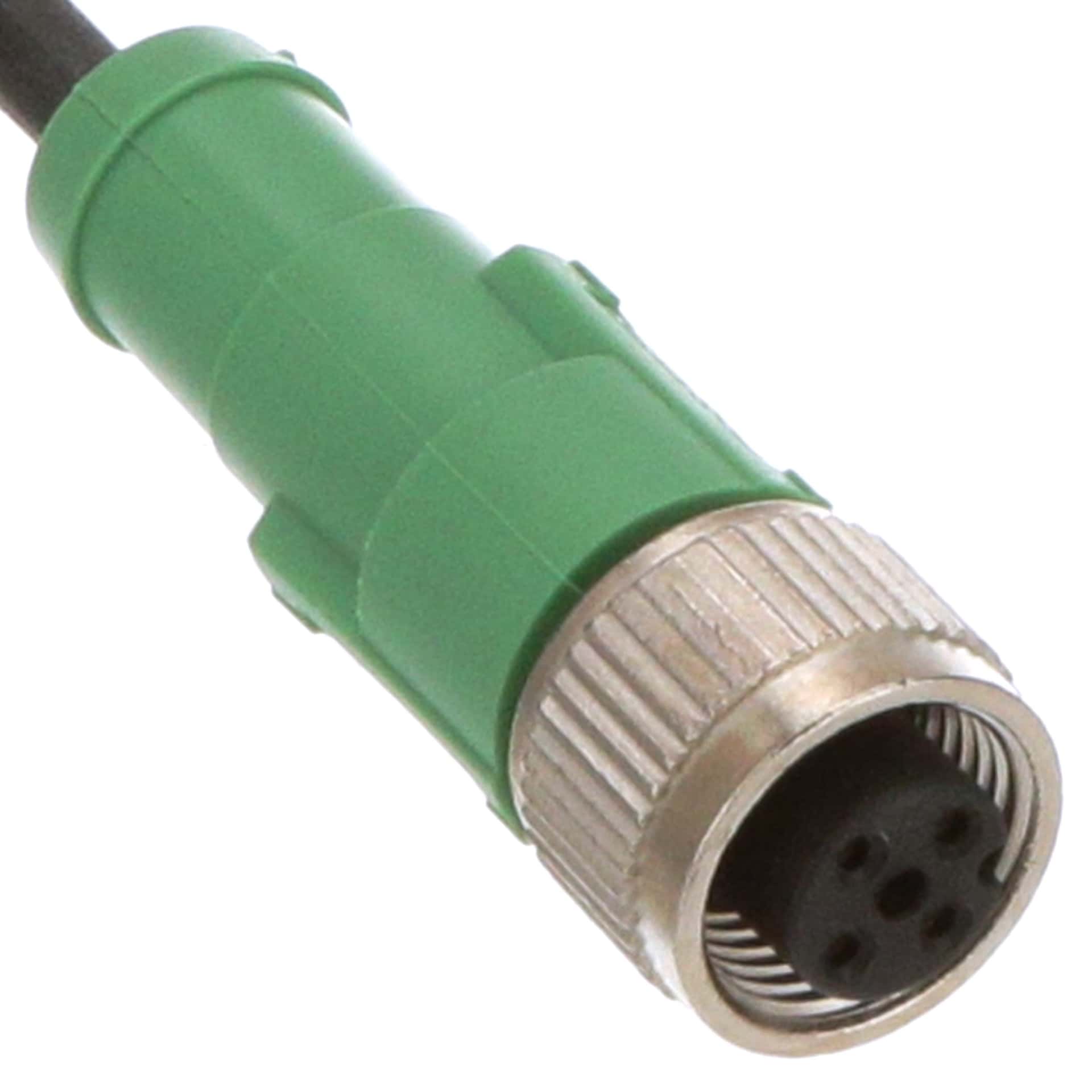

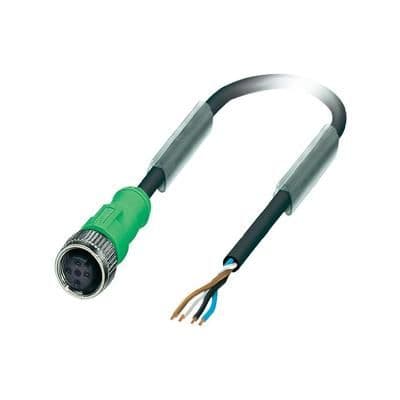

Product Images
