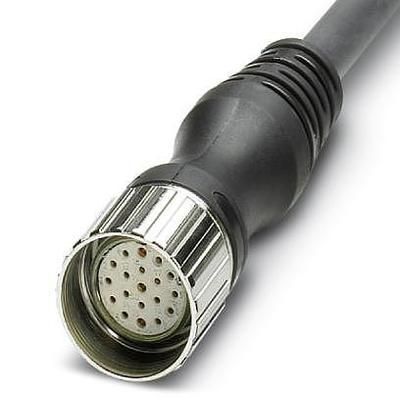

19-position, M23 circular cable assembly featuring a straight, female plug connector with gold-plated polyamide contacts and a PUR jacket. This 5-meter assembly supports 150V and operates within a -40°C to 90°C temperature range, offering IP65, waterproof, water-resistant, and dust-tight ratings. It includes 17AWG/20AWG round wire conductors and is lead-free and RoHS compliant.
Voltage Rating150V
MountingFree Hanging, Surface Mount
Quick Jump:
Technical Specifications
Phoenix Contact 1684056 technical specifications.
General
| Color | Black |
| Connector Type A | Plug, Power, N |
| Connector Type B | Wire Leads |
| Contact Gender | Male |
| Contact Material | Polyamide |
| Contact Plating | Gold |
| Gender | Female |
| Jacket Material | PUR |
| Lead Free | Lead Free |
| Length | 16.4foot |
| Max Operating Temperature | 90°C |
| Min Operating Temperature | -40°C |
| Mount | Free Hanging, Surface Mount |
| Number of Conductors | 19 |
| Number of Contacts | 19 |
| Orientation | Straight |
| Packaging | Bulk |
| Ratings | IP65, Waterproof, Water Resistant, Dust Tight |
| RoHS Compliant | Yes |
| Shielding | Unshielded |
| Voltage Rating | 150V |
| Weight | 2.293lb |
| Wire/Cable Gauge | 20AWG |
| Wire/Cable Type | Round |
Compliance
| RoHS | Compliant |
Datasheet
Phoenix Contact 1684056 Datasheet
Download the complete datasheet for Phoenix Contact 1684056 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.
