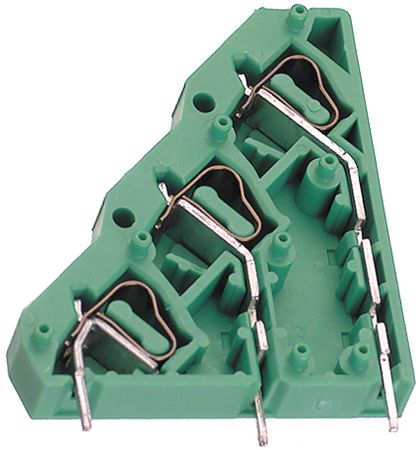

Modular terminal block featuring a 5.08mm pitch and right-angle orientation. This 3-row, 3-deck component offers 3 positions per level, supporting a maximum wire gauge of 12AWG and a minimum of 26AWG. It boasts a 12A current rating, 400V voltage rating, and is constructed from green polyamide with a UL94 V-0 flammability rating. Designed for through-hole mounting and solder termination, this lead-free, RoHS-compliant component is ideal for general interconnect applications.
Voltage300V
Current10A
Voltage Rating400V
Current Rating12A
Quick Jump:
Technical Specifications
Phoenix Contact 1704415 technical specifications.
General
| Color | Green |
| Current | 10A |
| Current Rating | 12A |
| Depth | 32.2mm |
| Flammability Rating | UL94 V-0 |
| Gender | Male |
| Housing Color | Green |
| Lead Free | Lead Free |
| Length | 5.08mm |
| Material | Polyamide |
| Max Current Rating | 12A |
| Max Supply Voltage | 250V |
| Mount | Through Hole |
| Number of Circuits | 1 |
| Number of Contacts | 3 |
| Number of Levels | 3 |
| Number of Positions | 1 |
| Number of Positions Per Level | 1 |
| Number of Rows | 3 |
| Orientation | Right Angle |
| Package Quantity | 50 |
| Packaging | Bulk |
| Pitch | 5.08mm |
| RoHS Compliant | Yes |
| Series | COMBICON ZFK3DS |
| Termination | Solder |
| Voltage | 300V |
| Voltage Rating | 400V |
| Weight | 2.151712oz |
| Wire Gauge (Max) | 26AWG |
| Wire Gauge (Min) | 12AWG |
Compliance
| RoHS | Compliant |
Datasheet
Phoenix Contact 1704415 Datasheet
Download the complete datasheet for Phoenix Contact 1704415 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.
