General purpose terminal block with 18 positions and 3.81mm pitch. Features straight, through-hole mounting with solder termination and a 2-level, 9-pole configuration. Rated for 8A and 300V, with a maximum supply voltage of 160V. Constructed with green polyamide insulation and tin-plated copper contacts, it meets UL94 V-0 flammability standards and is RoHS compliant. Suitable for wire gauges from 16AWG to 26AWG.
Voltage300V
Current10A
Voltage Rating200V
Current Rating8A
Quick Jump:
Technical Specifications
Phoenix Contact 1708107 technical specifications.
General
Approvals
UL, CSA, cULus, CB, EAC
Color
Green
Contact Material
Tin
Current
10A
Current Rating
8A
Depth
16.3mm
Flammability Rating
UL94 V-0
Gender
Male
Height
16.2mm
Housing Color
Green
Insulation Material
Nylon
Lead Free
Lead Free
Length
36.24mm
Material
Polyamide
Max Current Rating
10A
Max Supply Voltage
160V
Mount
Through Hole
Number of Circuits
18
Number of Contacts
18
Number of Levels
2
Number of Poles
9
Number of Positions
9
Number of Positions Per Level
9
Number of Rows
2
Orientation
Straight
Package Quantity
50
Packaging
Bulk
Pitch
3.81mm
Radiation Hardening
No
RoHS Compliant
Yes
Series
MKKDS
Termination
Screw
Voltage
300V
Voltage Rating
200V
Weight
3lb
Width
36.19mm
Wire Gauge (Max)
26AWG
Wire Gauge (Min)
16AWG
Compliance
RoHS
Compliant
Datasheet
Phoenix Contact 1708107 Datasheet
Download the complete datasheet for Phoenix Contact 1708107 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

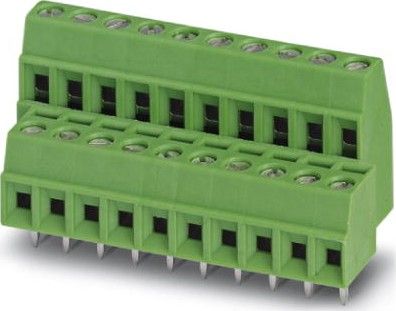

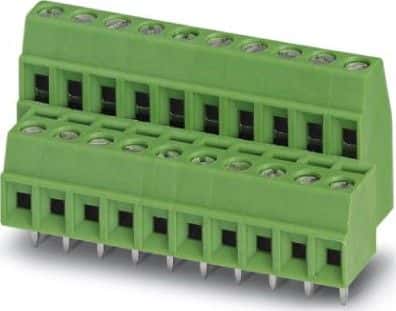

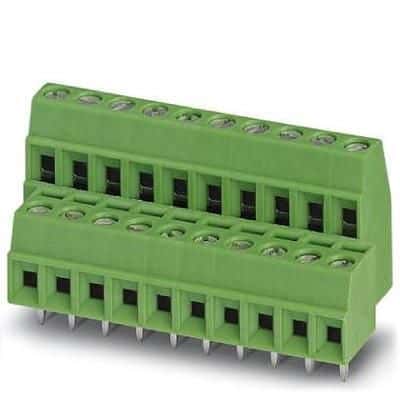

Product Images
