Barrier strip terminal block featuring 6 positions and 6 circuits, designed for straight, through-hole mounting. This component offers a 6A current rating and a 125V voltage rating, with a 2.54mm pitch. Constructed with a green nylon housing and tin-plated contacts, it meets UL94 V-0 flammability standards and is RoHS compliant. Suitable for wire gauges from 20AWG to 26AWG, it supports solder termination.
Voltage125V
Current6A
Voltage Rating125V
Current Rating6A
Quick Jump:
Technical Specifications
Phoenix Contact 1725698 technical specifications.
General
| Approvals | UL, CSA, cULus, EAC |
| Color | Green |
| Contact Material | Tin |
| Current | 6A |
| Current Rating | 6A |
| Depth | 6.2mm |
| Flammability Rating | UL94 V-0 |
| Height | 15.7mm |
| Housing Color | Green |
| Insulation Material | Nylon |
| Lead Free | Lead Free |
| Length | 6.2mm |
| Max Current Rating | 6A |
| Max Supply Voltage | 63V |
| Mount | Through Hole |
| Number of Circuits | 6 |
| Number of Contacts | 6 |
| Number of Levels | 1 |
| Number of Poles | 6 |
| Number of Positions | 6 |
| Number of Positions Per Level | 6 |
| Number of Rows | 1 |
| Orientation | Straight |
| Packaging | Bulk |
| Pitch | 2.54mm |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | MPT |
| Termination | Solder |
| Voltage | 125V |
| Voltage Rating | 125V |
| Weight | 0.06314oz |
| Width | 16mm |
| Wire Gauge (Max) | 26AWG |
| Wire Gauge (Min) | 20AWG |
| Wire/Cable Gauge | 26AWG |
Compliance
| RoHS | Compliant |
Datasheet
Phoenix Contact 1725698 Datasheet
Download the complete datasheet for Phoenix Contact 1725698 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

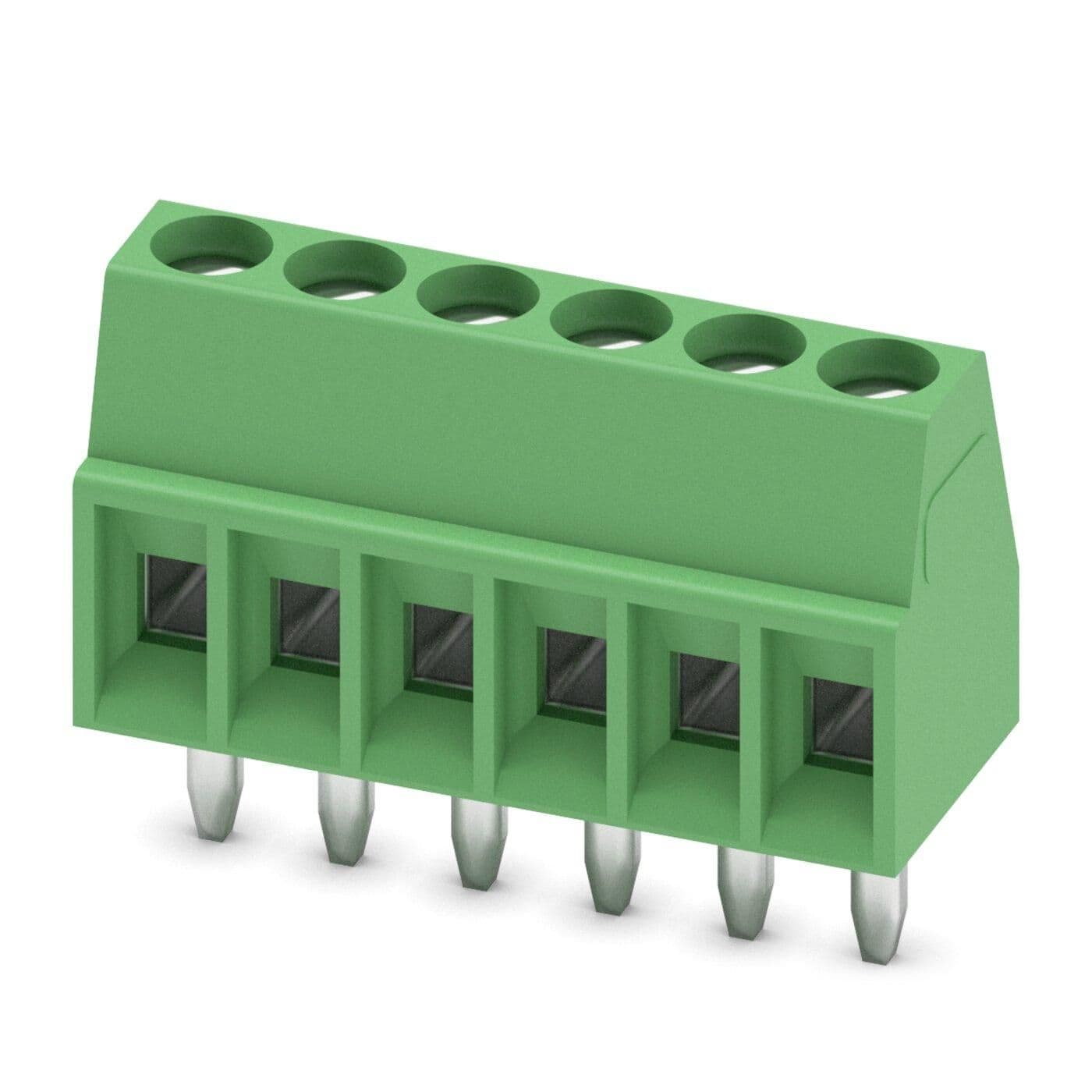

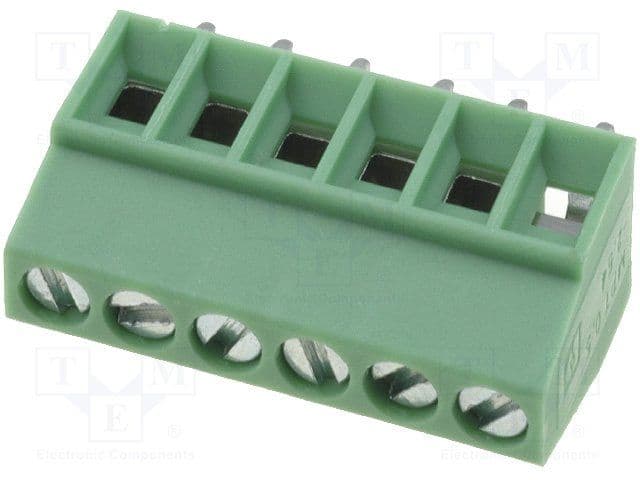

Product Images
