10-position, 1-row, 1-deck barrier strip terminal block with a 3.81mm pitch. Features a 10A current rating, 160V max supply voltage, and 300V voltage rating. Constructed with tin-plated copper contacts and a green nylon housing, it offers screw termination and through-hole mounting. UL94 V-0 flammability rating and RoHS compliant.
Voltage300V
Current13.5A
Voltage Rating300V
Current Rating10A
Quick Jump:
Technical Specifications
Phoenix Contact 1727094 technical specifications.
General
| Approvals | UL, CSA, cULus, CB, EAC |
| Color | Green |
| Contact Material | Tin |
| Current | 13.5A |
| Current Rating | 10A |
| Depth | 7.3mm |
| Flammability Rating | UL94 V-0 |
| Height | 12mm |
| Housing Color | Green |
| Insulation Material | Nylon |
| Lead Free | Lead Free |
| Length | 38.09mm |
| Max Current Rating | 12A |
| Max Supply Voltage | 160V |
| Mount | Through Hole |
| Number of Circuits | 10 |
| Number of Contacts | 10 |
| Number of Levels | 1 |
| Number of Poles | 10 |
| Number of Positions | 10 |
| Number of Positions Per Level | 10 |
| Number of Rows | 1 |
| Orientation | Straight |
| Package Quantity | 100 |
| Packaging | Bulk |
| Pitch | 3.81mm |
| Radiation Hardening | No |
| Reach SVHC Compliant | Unknown |
| RoHS Compliant | Yes |
| Series | COMBICON MKDS |
| Termination | Screw |
| Voltage | 300V |
| Voltage Rating | 300V |
| Weight | 0.17637oz |
| Width | 8.5mm |
| Wire Gauge (Max) | 26AWG |
| Wire Gauge (Min) | 16AWG |
| Wire/Cable Gauge | 26AWG |
Compliance
| RoHS | Compliant |
Datasheet
Phoenix Contact 1727094 Datasheet
Download the complete datasheet for Phoenix Contact 1727094 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

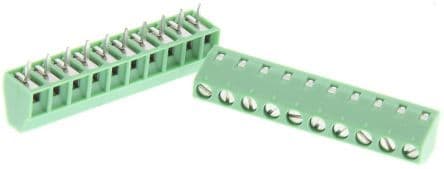

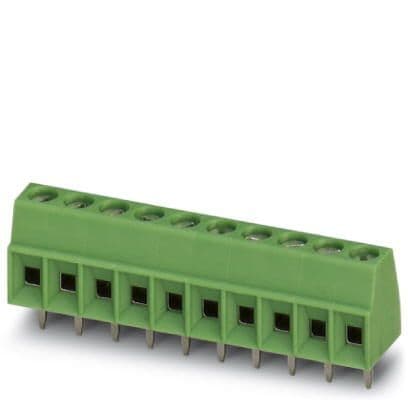

Product Images
