4-position, straight, through-hole mount terminal block with a 5.08mm pitch. Features a 24A current rating and 400V voltage rating. Tin-plated copper contacts ensure reliable connection. UL94 V-0 flammability rating and RoHS compliance for safety and environmental standards. Green housing for clear identification.
Voltage300V
Current20A
Voltage Rating400V
Current Rating24A
Quick Jump:
Technical Specifications
Phoenix Contact 1730528 technical specifications.
General
| Color | Green |
| Contact Material | Tin |
| Current | 20A |
| Current Rating | 24A |
| Flammability Rating | UL94 V-0 |
| Height | 21.5mm |
| Housing Color | Green |
| Length | 11.62mm |
| Max Current Rating | 24A |
| Mount | Through Hole |
| Number of Circuits | 4 |
| Number of Contacts | 4 |
| Number of Levels | 1 |
| Number of Positions | 4 |
| Number of Positions Per Level | 4 |
| Orientation | Straight |
| Package Quantity | 50 |
| Packaging | Bulk |
| Pitch | 5.08mm |
| RoHS Compliant | Yes |
| Series | MKDSD |
| Termination | Screw |
| Voltage | 300V |
| Voltage Rating | 400V |
| Weight | 0.285719oz |
| Width | 21.7mm |
| Wire Gauge (Max) | 30AWG |
| Wire Gauge (Min) | 12AWG |
Compliance
| RoHS | Compliant |
Datasheet
Phoenix Contact 1730528 Datasheet
Download the complete datasheet for Phoenix Contact 1730528 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

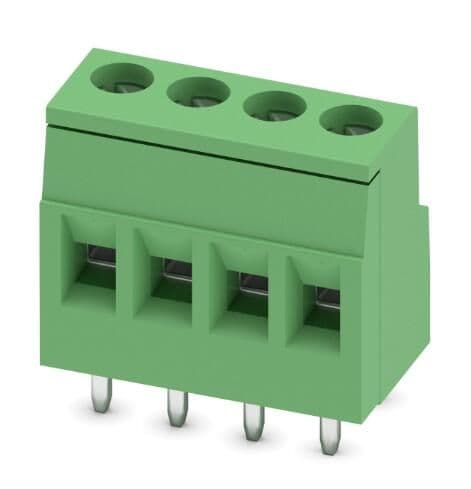

Product Images
