2-position, 1-level terminal block with 7.5mm pitch, straight orientation, and screw termination. Features a 12A current rating, 300V voltage rating, and accepts wire gauges from 12AWG to 30AWG. Constructed with a green polyamide housing and tin-plated copper contacts. UL94 V-0 flammability rating and multiple international approvals ensure reliable performance.
Voltage300V
Current15A
Voltage Rating500V
Current Rating12A
Quick Jump:
Technical Specifications
Phoenix Contact 1737709 technical specifications.
General
Approvals
UL, CSA, VDE, CB, EAC
Color
Green
Contact Material
Tin
Contact Plating
Tin
Current
15A
Current Rating
12A
Depth
26mm
Flammability Rating
UL94 V-0
Gender
Female
Height
13mm
Housing Color
Green
Insulation Material
Nylon
Lead Free
Lead Free
Length
12.6mm
Material
Polyamide
Mount
Free Hanging, Plug-In
Number of Contacts
2
Number of Levels
1
Number of Poles
2
Number of Positions
2
Number of Positions Per Level
2
Number of Rows
1
Orientation
Straight
Package Quantity
50
Packaging
Bulk
Pitch
7.5mm
RoHS Compliant
Yes
Series
COMBICON GMVSTBR
Termination
Screw
Voltage
300V
Voltage Rating
500V
DC Rated Voltage
500V
Weight
3.527lb
Width
26mm
Wire Gauge (Max)
30AWG
Wire Gauge (Min)
12AWG
Compliance
RoHS
Compliant
Datasheet
Phoenix Contact 1737709 Datasheet
Download the complete datasheet for Phoenix Contact 1737709 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

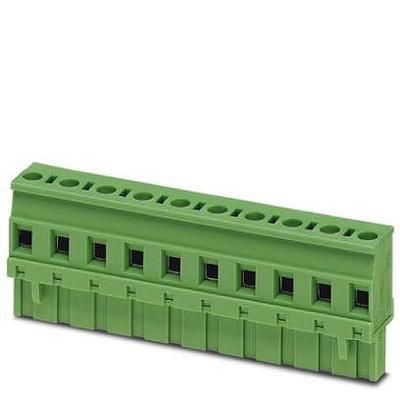

Product Images
