Barrier strip terminal block featuring 5 positions and 1 row. Rated for 13.5A current and 200V voltage, with a maximum supply voltage of 160V. Accommodates wire gauges from 16AWG to 30AWG. Constructed with a green polyamide housing and tin-plated copper contacts. Through-hole mounting with screw termination. UL94 V-0 flammability rating and RoHS compliant.
Voltage300V
Current10A
Voltage Rating200V
Current Rating13.5A
Quick Jump:
Technical Specifications
Phoenix Contact 1751277 technical specifications.
General
Approvals
UL, CSA, cULus, CB, EAC
Color
Green
Contact Material
Tin
Current
10A
Current Rating
13.5A
Depth
7.3mm
Flammability Rating
UL94 V-0
Gender
Male
Height
12mm
Housing Color
Green
Insulation Material
Nylon
Lead Free
Lead Free
Length
7.3mm
Material
Polyamide
Max Current Rating
12A
Max Supply Voltage
160V
Mount
Through Hole
Number of Circuits
5
Number of Contacts
5
Number of Levels
1
Number of Poles
5
Number of Positions
5
Number of Positions Per Level
5
Number of Rows
1
Orientation
Straight
Package Quantity
50
Packaging
Bulk
Pitch
3.5mm
Reach SVHC Compliant
Unknown
RoHS Compliant
Yes
Series
COMBICON MKDS
Termination
Screw
Voltage
300V
Voltage Rating
200V
Weight
0.092559oz
Width
18mm
Wire Gauge (Max)
30AWG
Wire Gauge (Min)
16AWG
Wire/Cable Gauge
30AWG
Compliance
RoHS
Compliant
Datasheet
Phoenix Contact 1751277 Datasheet
Download the complete datasheet for Phoenix Contact 1751277 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

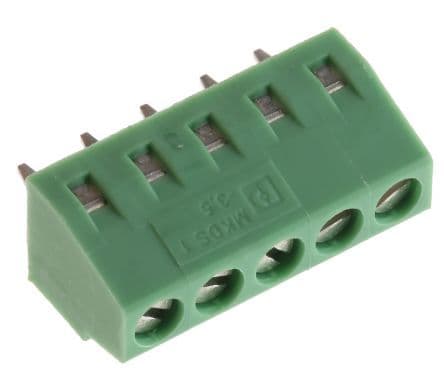

Product Images
