Shrouded header, male, straight orientation, 5 positions, 5 poles, 1 level, 5mm pitch. Features 12A current rating, 250V DC rated voltage, and 300V voltage rating. Tin contact material and plating. Through-hole mounting with solder termination. Housing is green, with a UL94 V-0 flammability rating. Approvals include UL and CSA.
Voltage300V
Current12A
Voltage Rating250V
Current Rating12A
Quick Jump:
Technical Specifications
Phoenix Contact 1755545 technical specifications.
General
| Approvals | UL, CSA |
| Color | Green, Grey |
| Contact Material | Tin |
| Contact Plating | Tin |
| Current | 12A |
| Current Rating | 12A |
| Depth | 8.6mm |
| Flammability Rating | UL94 V-0 |
| Gender | Male |
| Height | 15.9mm |
| Housing Color | Green |
| Lead Free | Lead Free |
| Length | 27mm |
| Max Current Rating | 12A |
| Mount | Through Hole |
| Number of Contacts | 5 |
| Number of Levels | 1 |
| Number of Poles | 5 |
| Number of Positions | 5 |
| Number of Positions Per Level | 5 |
| Number of Rows | 1 |
| Orientation | Straight |
| Package Quantity | 50 |
| Packaging | Bulk |
| Pitch | 5mm |
| Reach SVHC Compliant | Unknown |
| RoHS Compliant | Yes |
| Series | MSTBVA |
| Termination | Solder |
| Voltage | 300V |
| Voltage Rating | 250V |
| DC Rated Voltage | 250V |
| Weight | 0.08889oz |
| Width | 27mm |
Compliance
| RoHS | Compliant |
Datasheet
Phoenix Contact 1755545 Datasheet
Download the complete datasheet for Phoenix Contact 1755545 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

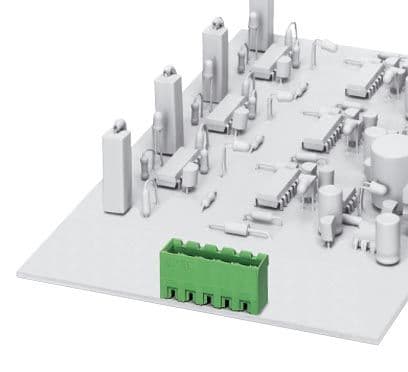

Product Images
