Barrier strip terminal block featuring 4 positions, 1 row, and 1 deck, designed for screw termination. This component supports a maximum current rating of 12A and a voltage rating of 250V, with a maximum supply voltage of 250V. Constructed with a green nylon housing and tin-plated copper contacts, it offers a 5.08mm pitch and accepts wire gauges from 12AWG to 30AWG. The terminal block boasts UL94 V-0 flammability rating and operates within a temperature range of -40°C to 100°C, with multiple international approvals including UL, VDE, and CSA.
Voltage300V
Current15A
Voltage Rating250V
Current Rating12A
Quick Jump:
Technical Specifications
Phoenix Contact 1757035 technical specifications.
General
Approvals
UL, VDE, CSA, cULus, CB, EAC
Color
Green
Contact Material
Tin
Contact Plating
Tin
Current
15A
Current Rating
12A
Depth
18.2mm
Flammability Rating
UL94 V-0
Gender
Male
Height
18.3mm
Housing Color
Green
Insulation Material
Nylon
Lead Free
Lead Free
Length
20.32mm
Max Current Rating
12A
Max Operating Temperature
100°C
Min Operating Temperature
-40°C
Max Supply Voltage
250V
Mount
Free Hanging, Cable
Number of Circuits
4
Number of Contacts
4
Number of Levels
1
Number of Poles
4
Number of Positions
4
Number of Positions Per Level
4
Number of Rows
1
Orientation
Straight
Package Quantity
50
Packaging
Bulk
Pitch
5.08mm
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
MSTB
Termination
Screw
Voltage
300V
Voltage Rating
250V
Weight
4.515067oz
Width
20.32mm
Wire Gauge (Max)
30AWG
Wire Gauge (Min)
12AWG
Wire/Cable Gauge
24AWG
Compliance
RoHS
Compliant
Datasheet
Phoenix Contact 1757035 Datasheet
Download the complete datasheet for Phoenix Contact 1757035 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

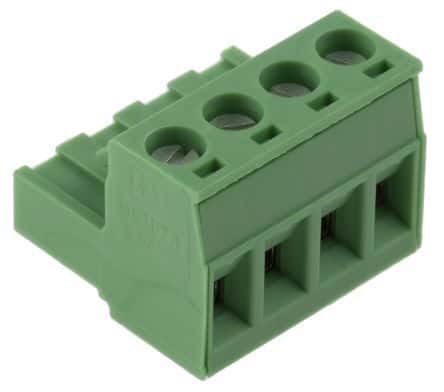

Product Images
