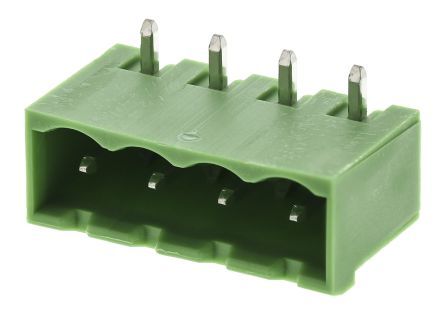

Green, right-angle strip terminal block with 4 positions and 4 poles. Features a 5.08mm pitch, 12A current rating, and 250V voltage rating. Constructed with tin-plated contacts and a UL94 V-0 flammability rated housing. Through-hole mounting and solder termination. RoHS compliant.
Voltage300V
Current15A
Voltage Rating250V
Current Rating12A
Quick Jump:
Technical Specifications
Phoenix Contact 1757268 technical specifications.
General
| Approvals | UL, CSA |
| Color | Green |
| Contact Material | Tin |
| Contact Plating | Tin |
| Current | 15A |
| Current Rating | 12A |
| Depth | 12mm |
| Flammability Rating | UL94 V-0 |
| Gender | Male |
| Height | 12.1mm |
| Housing Color | Green |
| Lead Free | Lead Free |
| Length | 22.32mm |
| Max Current Rating | 12A |
| Max Operating Temperature | 70°C |
| Mount | Through Hole |
| Number of Contacts | 4 |
| Number of Levels | 1 |
| Number of Poles | 4 |
| Number of Positions | 4 |
| Number of Positions Per Level | 4 |
| Number of Rows | 1 |
| Orientation | Right Angle |
| Package Quantity | 50 |
| Packaging | Bulk |
| Pitch | 5.08mm |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | MSTBA |
| Termination | Solder |
| Voltage | 300V |
| Voltage Rating | 250V |
| DC Rated Voltage | 250V |
| Weight | 5.396916oz |
| Width | 22.24mm |
Compliance
| RoHS | Compliant |
Datasheet
Phoenix Contact 1757268 Datasheet
Download the complete datasheet for Phoenix Contact 1757268 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.
