8-position, 1-level terminal block with 7.5mm pitch, featuring screw termination and a straight, female, cable mount orientation. Rated for 12A and 300V, with a maximum current of 15A and voltage rating of 400V. Constructed with a green polyamide housing and tin-plated copper contacts, it offers UL94 V-0 flammability. Supports wire gauges from 12AWG to 30AWG and is lead-free and RoHS compliant.
Voltage300V
Current15A
Voltage Rating400V
Current Rating12A
Quick Jump:
Technical Specifications
Phoenix Contact 1766945 technical specifications.
General
| Approvals | UL, CSA, VDE, CB, EAC |
| Color | Green |
| Contact Material | Tin |
| Contact Plating | Tin |
| Current | 15A |
| Current Rating | 12A |
| Depth | 15mm |
| Flammability Rating | UL94 V-0 |
| Gender | Female |
| Height | 18.2mm |
| Housing Color | Green |
| Insulation Material | Nylon |
| Lead Free | Lead Free |
| Length | 15mm |
| Material | Polyamide |
| Mount | Free Hanging, Plug-In |
| Number of Contacts | 8 |
| Number of Levels | 1 |
| Number of Poles | 8 |
| Number of Positions | 8 |
| Number of Positions Per Level | 8 |
| Number of Rows | 1 |
| Orientation | Straight |
| Package Quantity | 50 |
| Packaging | Bulk |
| Pitch | 7.5mm |
| RoHS Compliant | Yes |
| Series | COMBICON GMSTB |
| Termination | Screw |
| Voltage | 300V |
| Voltage Rating | 400V |
| Weight | 1.323lb |
| Width | 58mm |
| Wire Gauge (Max) | 30AWG |
| Wire Gauge (Min) | 12AWG |
Compliance
| RoHS | Compliant |
Datasheet
Phoenix Contact 1766945 Datasheet
Download the complete datasheet for Phoenix Contact 1766945 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

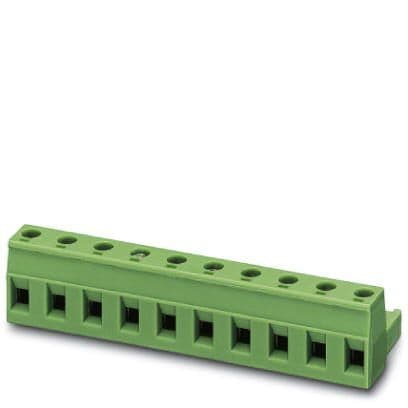

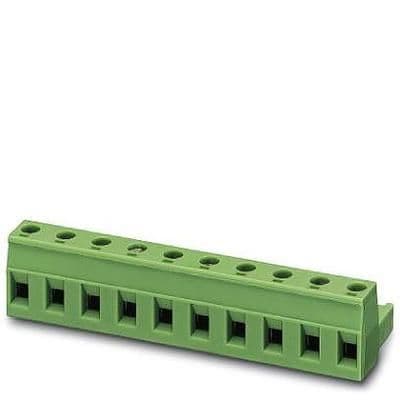

Product Images
