Modular terminal block, 6-position, 1-level, straight male connector with 5.08mm pitch. Features 12A current rating, 250V voltage rating, and supports wire gauges from 12AWG to 30AWG. Constructed with tin-plated copper contacts and a green Nylon insulation material, it boasts UL94 V-0 flammability rating. Approvals include UL, CSA, VDE, CB, and EAC, with RoHS compliance.
Voltage300V
Current15A
Voltage Rating250V
Current Rating12A
Quick Jump:
Technical Specifications
Phoenix Contact 1792281 technical specifications.
General
Approvals
UL, CSA, VDE, CB, EAC
Color
Green
Contact Material
Tin
Contact Plating
Tin
Current
15A
Current Rating
12A
Depth
12.6mm
Flammability Rating
UL94 V-0
Gender
Male
Height
26mm
Housing Color
Green
Insulation Material
Nylon
Lead Free
Lead Free
Length
30.48mm
Max Current Rating
12A
Max Supply Voltage
250V
Mount
Free Hanging, Cable
Number of Circuits
6
Number of Contacts
6
Number of Levels
1
Number of Poles
6
Number of Positions
6
Number of Positions Per Level
6
Number of Rows
1
Orientation
Straight
Package Quantity
50
Packaging
Bulk
Pitch
5.08mm
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
MVSTBR
Termination
Screw
Voltage
300V
Voltage Rating
250V
Weight
4.656163oz
Width
31.48mm
Wire Gauge (Max)
30AWG
Wire Gauge (Min)
12AWG
Wire/Cable Gauge
24AWG
Compliance
RoHS
Compliant
Datasheet
Phoenix Contact 1792281 Datasheet
Download the complete datasheet for Phoenix Contact 1792281 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

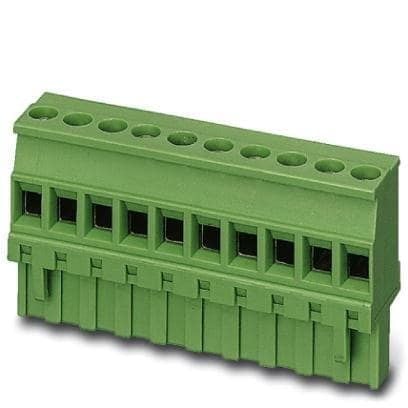

Product Images
