Barrier strip terminal block, 10 circuits, 10 positions, 1 row, 1 deck, 5.08mm pitch, straight orientation, screw termination. Rated for 12A and 250V, with a maximum current of 15A and maximum supply voltage of 250V. Features tin-plated copper contacts, nylon insulation, and a UL94 V-0 flammability rating. Suitable for wire gauges from 12AWG to 30AWG. Approvals include UL, CSA, VDE, cULus, CB, and EAC.
Voltage300V
Current15A
Voltage Rating250V
Current Rating12A
Quick Jump:
Technical Specifications
Phoenix Contact 1792320 technical specifications.
General
Approvals
UL, CSA, VDE, cULus, CB, EAC
Color
Green
Contact Material
Tin
Contact Plating
Tin
Current
15A
Current Rating
12A
Depth
12.6mm
Flammability Rating
UL94 V-0
Gender
Male
Height
26mm
Housing Color
Green
Insulation Material
Nylon
Lead Free
Lead Free
Length
50.8mm
Max Current Rating
12A
Max Supply Voltage
250V
Mount
Free Hanging, Cable
Number of Circuits
10
Number of Contacts
10
Number of Levels
1
Number of Poles
10
Number of Positions
10
Number of Positions Per Level
10
Number of Rows
1
Orientation
Straight
Package Quantity
50
Packaging
Bulk
Pitch
5.08mm
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
MVSTBR
Termination
Screw
Voltage
300V
Voltage Rating
250V
Weight
4.656163oz
Width
51.8mm
Wire Gauge (Max)
30AWG
Wire Gauge (Min)
12AWG
Wire/Cable Gauge
24AWG
Compliance
RoHS
Compliant
Datasheet
Phoenix Contact 1792320 Datasheet
Download the complete datasheet for Phoenix Contact 1792320 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

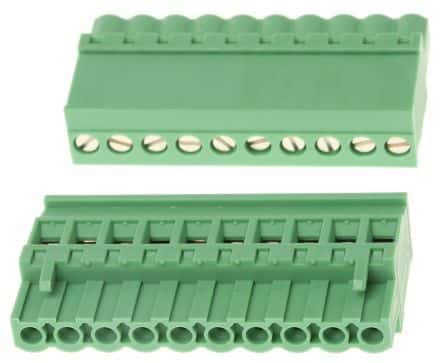

Product Images
