Barrier strip terminal block, 8 positions, 1 row, 1 deck, 12A max current rating, 250V voltage rating. Features tin-plated copper contacts, nylon insulation, and a green housing. Designed for free-hanging, cable mounting with screw termination. Compliant with UL, CSA, VDE, EAC, and RoHS standards. Accepts wire gauges from 12AWG to 24AWG.
Voltage300V
Current15A
Voltage Rating250V
Current Rating12A
Quick Jump:
Technical Specifications
Phoenix Contact 1792812 technical specifications.
General
Approvals
UL, CSA, VDE, EAC
Color
Green
Contact Material
Tin
Contact Plating
Tin
Current
15A
Current Rating
12A
Depth
12.6mm
Flammability Rating
UL94 V-0
Gender
Male
Height
26mm
Housing Color
Green
Insulation Material
Nylon
Lead Free
Lead Free
Length
40.64mm
Material
Nylon
Max Current Rating
12A
Max Supply Voltage
250V
Mount
Free Hanging, Cable
Number of Circuits
8
Number of Contacts
8
Number of Levels
1
Number of Poles
8
Number of Positions
8
Number of Positions Per Level
8
Number of Rows
1
Number of Ways
8
Orientation
Straight
Package Quantity
50
Packaging
Bulk
Pitch
5.08mm
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
COMBICON MVSTBW
Termination
Screw
Voltage
300V
Voltage Rating
250V
Weight
4.691437oz
Width
40.64mm
Wire Gauge (Max)
24AWG
Wire Gauge (Min)
12AWG
Wire/Cable Gauge
24AWG
Compliance
RoHS
Compliant
Datasheet
Phoenix Contact 1792812 Datasheet
Download the complete datasheet for Phoenix Contact 1792812 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

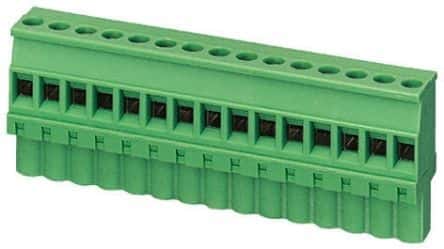

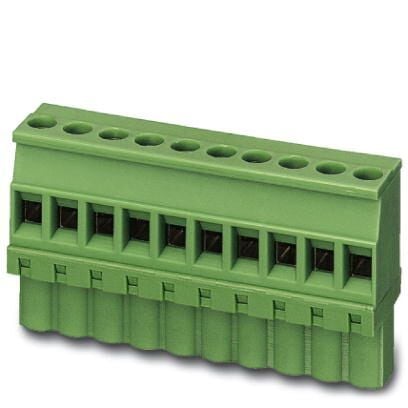

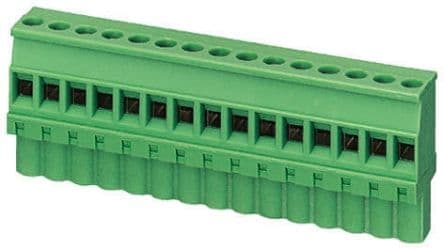

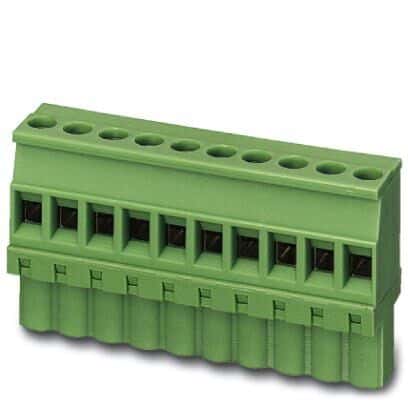

Product Images
