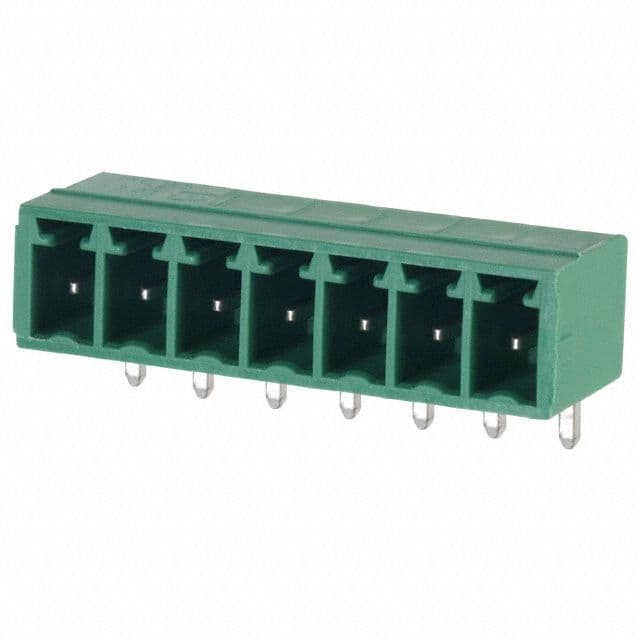

Right-angle shrouded header with 7 positions and a 3.81mm pitch. Features tin-plated contacts for 8A current rating and 160V voltage rating. Constructed from PBT material with a green housing, this male connector offers UL94 V-0 flammability. Through-hole termination ensures secure board mounting.
Voltage300V
Current8A
Voltage Rating160V
Current Rating8A
Quick Jump:
Technical Specifications
Phoenix Contact 1803329 technical specifications.
General
| Approvals | UL, CSA |
| Color | Green |
| Contact Material | Tin |
| Contact Plating | Tin |
| Current | 8A |
| Current Rating | 8A |
| Depth | 9.2mm |
| Flammability Rating | UL94 V-0 |
| Gender | Male |
| Height | 10.65mm |
| Housing Color | Green |
| Lead Free | Lead Free |
| Length | 28.06mm |
| Material | PBT |
| Max Current Rating | 8A |
| Mount | Through Hole |
| Number of Contacts | 7 |
| Number of Levels | 1 |
| Number of Poles | 7 |
| Number of Positions | 7 |
| Number of Positions Per Level | 7 |
| Number of Rows | 1 |
| Orientation | Right Angle |
| Package Quantity | 50 |
| Packaging | Bulk |
| Pitch | 3.81mm |
| RoHS Compliant | Yes |
| Series | MC |
| Termination | Solder |
| Voltage | 300V |
| Voltage Rating | 160V |
| DC Rated Voltage | 640mV |
| Weight | 4oz |
| Width | 28.06mm |
Compliance
| RoHS | Compliant |
Datasheet
Phoenix Contact 1803329 Datasheet
Download the complete datasheet for Phoenix Contact 1803329 to view detailed technical specifications.
