4-position, 1-level terminal block with 3.81mm pitch. Features right-angle orientation for cable mounting and screw termination. Rated for 8A current and 160V voltage, with a maximum wire gauge of 28AWG. Constructed with tin-plated contacts and a green housing, meeting UL94 V-0 flammability standards. RoHS compliant and lead-free.
Voltage300V
Current8A
Voltage Rating160V
Current Rating8A
Quick Jump:
Technical Specifications
Phoenix Contact 1803594 technical specifications.
General
Approvals
UL, CSA, VDE, cULus, CB, EAC
Color
Green
Contact Material
Tin
Contact Plating
Tin
Current
8A
Current Rating
8A
Depth
16.1mm
Flammability Rating
UL94 V-0
Gender
Male
Height
11.1mm
Lead Free
Lead Free
Length
16.03mm
Max Current Rating
8A
Max Supply Voltage
160V
Mount
Free Hanging, Cable
Number of Circuits
4
Number of Contacts
4
Number of Levels
1
Number of Poles
4
Number of Positions
4
Number of Positions Per Level
4
Number of Rows
1
Orientation
Right Angle
Package Quantity
50
Packaging
Bulk
Pitch
3.81mm
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
MC
Termination
Screw
Voltage
300V
Voltage Rating
160V
DC Rated Voltage
160V
Weight
3.456848oz
Width
16.1mm
Wire Gauge (Max)
30AWG
Wire Gauge (Min)
14AWG
Wire/Cable Gauge
28AWG
Compliance
RoHS
Compliant
Datasheet
Phoenix Contact 1803594 Datasheet
Download the complete datasheet for Phoenix Contact 1803594 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

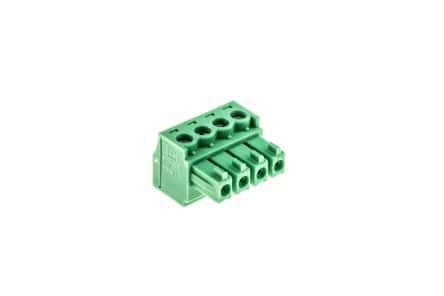

Product Images
