9-position, right-angle terminal block with 3.81mm pitch, designed for cable mounting. Features a 8A current rating and 160V DC rated voltage, with screw termination and tin-plated contacts. Constructed with green polyamide insulation, it meets UL94 V-0 flammability rating and is RoHS compliant. Suitable for wire gauges from 14AWG to 30AWG.
Voltage300V
Current8A
Voltage Rating160V
Current Rating8A
Quick Jump:
Technical Specifications
Phoenix Contact 1803646 technical specifications.
General
Approvals
UL, CSA, VDE, cULus, CB, EAC
Color
Green
Contact Material
Tin
Contact Plating
Tin
Current
8A
Current Rating
8A
Depth
16.1mm
Flammability Rating
UL94 V-0
Gender
Female
Height
11.1mm
Housing Color
Green
Insulation Material
Nylon
Lead Free
Lead Free
Length
35.08mm
Material
Polyamide
Max Current Rating
8A
Max Supply Voltage
160V
Mount
Free Hanging, Cable, Plug-In
Number of Circuits
9
Number of Contacts
9
Number of Levels
1
Number of Poles
9
Number of Positions
9
Number of Positions Per Level
9
Number of Rows
1
Orientation
Right Angle
Package Quantity
50
Packaging
Bulk
Pitch
3.81mm
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
MC
Termination
Screw
Thickness
30.48mm
Voltage
300V
Voltage Rating
160V
DC Rated Voltage
160V
Weight
3.456848oz
Width
35.08mm
Wire Gauge (Max)
30AWG
Wire Gauge (Min)
14AWG
Wire/Cable Gauge
28AWG
Compliance
RoHS
Compliant
Datasheet
Phoenix Contact 1803646 Datasheet
Download the complete datasheet for Phoenix Contact 1803646 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

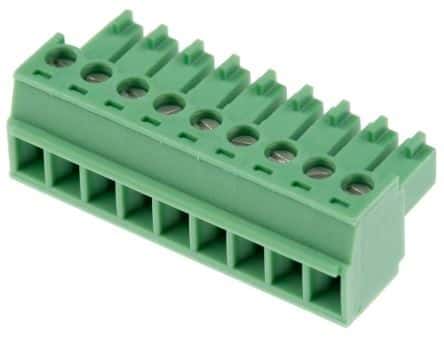

Product Images
