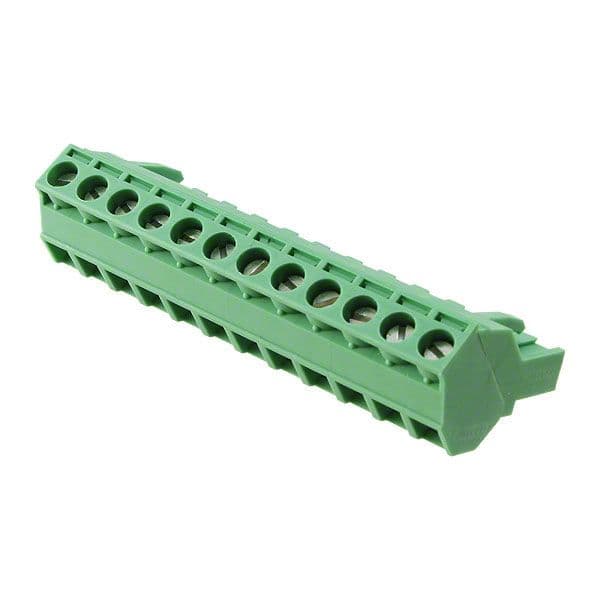

12-position, 12-pole female terminal block with 5.08mm pitch, designed for cable mounting. Features a straight orientation and screw termination, supporting a maximum current rating of 12A and a maximum supply voltage of 250V. Constructed with a green polyamide housing and tin-plated copper contacts, it meets UL94 V-0 flammability rating and is RoHS compliant. Suitable for wire gauges from 12AWG to 30AWG.
Voltage300V
Current10A
Voltage Rating250V
Current Rating12A
Quick Jump:
Technical Specifications
Phoenix Contact 1826380 technical specifications.
General
Approvals
UL, CSA, cULus, EAC
Color
Green
Contact Material
Tin
Contact Plating
Tin
Current
10A
Current Rating
12A
Depth
25.5mm
Flammability Rating
UL94 V-0
Gender
Female
Height
25.6mm
Housing Color
Green
Insulation Material
Nylon
Lead Free
Lead Free
Length
60.96mm
Material
Polyamide
Max Current Rating
12A
Max Supply Voltage
250V
Mount
Free Hanging, Cable, Plug-In
Number of Circuits
12
Number of Contacts
12
Number of Levels
1
Number of Poles
12
Number of Positions
12
Number of Positions Per Level
12
Number of Rows
1
Orientation
Straight
Package Quantity
50
Packaging
Bulk
Pitch
5.08mm
RoHS Compliant
Yes
Series
COMBICON SMSTB
Termination
Screw
Voltage
300V
Voltage Rating
250V
Weight
4.620889oz
Width
60.96mm
Wire Gauge (Max)
30AWG
Wire Gauge (Min)
12AWG
Compliance
RoHS
Compliant
Datasheet
Phoenix Contact 1826380 Datasheet
Download the complete datasheet for Phoenix Contact 1826380 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.
