Modular terminal block, 9-position, 1-row, 1-deck configuration, featuring 3.81mm pitch and straight orientation. Rated for 8A current and 160V DC supply voltage, with a maximum voltage rating of 300V. Constructed with a green polyamide housing and tin-plated copper contacts, this RoHS compliant component supports wire gauges from 14AWG to 30AWG and offers screw termination. Approvals include UL, CSA, VDE, cULus, CB, and EAC, with a UL94 V-0 flammability rating.
Voltage300V
Current8A
Voltage Rating160V
Current Rating8A
Quick Jump:
Technical Specifications
Phoenix Contact 1827046 technical specifications.
General
Approvals
UL, CSA, VDE, cULus, CB, EAC
Color
Green
Contact Material
Tin
Contact Plating
Tin
Current
8A
Current Rating
8A
Depth
19.1mm
Flammability Rating
UL94 V-0
Gender
Female
Height
12.5mm
Housing Color
Green
Insulation Material
Nylon
Lead Free
Lead Free
Length
35.08mm
Material
Polyamide
Max Current Rating
8A
Max Supply Voltage
160V
Mount
Free Hanging, Cable
Number of Circuits
9
Number of Contacts
9
Number of Levels
1
Number of Poles
9
Number of Positions
9
Number of Positions Per Level
9
Number of Rows
1
Orientation
Straight
Package Quantity
50
Packaging
Bulk
Pitch
3.81mm
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
MCVW
Termination
Screw
Voltage
300V
Voltage Rating
160V
DC Rated Voltage
160V
Weight
3.56267oz
Width
34.78mm
Wire Gauge (Max)
30AWG
Wire Gauge (Min)
14AWG
Wire/Cable Gauge
28AWG
Compliance
RoHS
Compliant
Datasheet
Phoenix Contact 1827046 Datasheet
Download the complete datasheet for Phoenix Contact 1827046 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

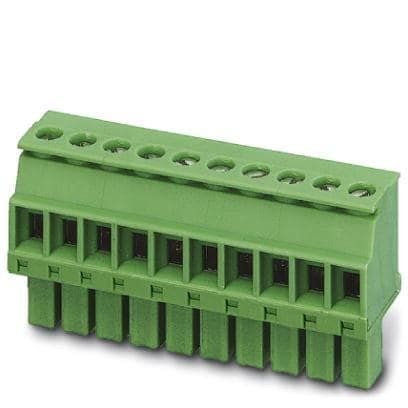

Product Images
