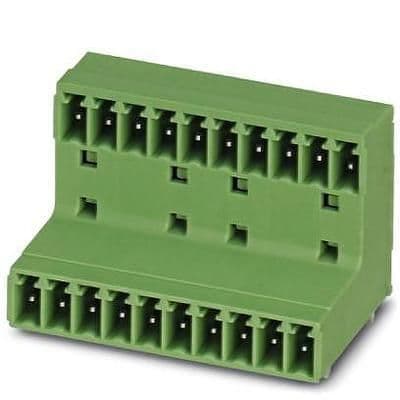

32-position, 2-row right-angle header for board-to-board applications. Features a 3.81mm pitch and tin-plated copper contacts for reliable solder termination. Rated for 8A current and 160V voltage, with a UL94 V-0 flammability rating. Green housing ensures clear identification.
Voltage300V
Current8A
Voltage Rating160V
Current Rating8A
Quick Jump:
Technical Specifications
Phoenix Contact 1830091 technical specifications.
General
| Color | Green |
| Contact Material | Tin |
| Contact Plating | Tin |
| Current | 8A |
| Current Rating | 8A |
| Depth | 21.9mm |
| Flammability Rating | UL94 V-0 |
| Height | 26.2mm |
| Housing Color | Green |
| Lead Free | Lead Free |
| Length | 21.9mm |
| Max Current Rating | 8A |
| Mount | Through Hole |
| Number of Contacts | 32 |
| Number of Levels | 2 |
| Number of Positions | 16 |
| Number of Positions Per Level | 16 |
| Number of Rows | 2 |
| Orientation | Right Angle |
| Package Quantity | 50 |
| Packaging | Bulk |
| Pitch | 3.81mm |
| RoHS Compliant | Yes |
| Series | MCD |
| Termination | Solder |
| Voltage | 300V |
| Voltage Rating | 160V |
| Weight | 4.09178oz |
| Width | 62.35mm |
Compliance
| RoHS | Compliant |
Datasheet
Phoenix Contact 1830091 Datasheet
Download the complete datasheet for Phoenix Contact 1830091 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.
