5-position, 1-level terminal block featuring 5.08mm pitch for right-angle cable mounting. Rated for 8A and 300V, it utilizes tin-plated copper contacts and a green, UL94 V-0 rated housing. Accommodates wire gauges from 14AWG to 30AWG with screw termination.
Voltage300V
Current8A
Voltage Rating250V
Current Rating8A
Quick Jump:
Technical Specifications
Phoenix Contact 1836105 technical specifications.
General
| Color | Green |
| Contact Material | Copper |
| Contact Plating | Tin |
| Current | 8A |
| Current Rating | 8A |
| Flammability Rating | UL94 V-0 |

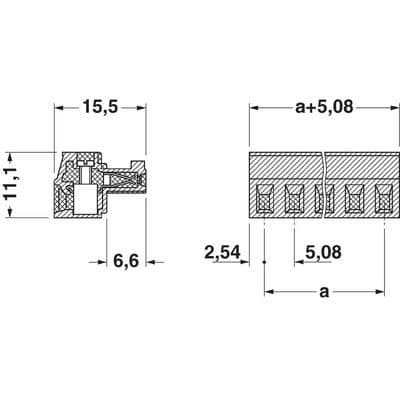

| Height | 15.5mm |
| Housing Color | Green |
| Length | 11.1mm |
| Mount | Free Hanging |
| Number of Levels | 1 |
| Number of Positions | 5 |
| Number of Positions Per Level | 5 |
| Number of Rows | 1 |
| Package Quantity | 50 |
| Packaging | Bulk |
| Pitch | 0.2inch |
| RoHS Compliant | Yes |
| Series | MC |
| Termination | Screw |
| Voltage | 300V |
| Voltage Rating | 250V |
| Weight | 3.703766oz |
| Width | 19.08mm |
| Wire Gauge (Max) | 30AWG |
| Wire Gauge (Min) | 14AWG |
Compliance
| RoHS | Compliant |
