20-position, 1-level terminal block with 3.81mm pitch. Features right-angle orientation for cable mounting and screw termination. Rated for 8A current and 300V voltage, with a UL94 V-0 flammability rating. Contact material is tin with tin plating. Accommodates wire gauges from 14AWG to 30AWG.
Voltage300V
Current8A
Voltage Rating160V
Current Rating8A
Quick Jump:
Technical Specifications
Phoenix Contact 1840353 technical specifications.
General
| Color | Green |
| Contact Material | Tin |
| Contact Plating | Tin |
| Current | 8A |
| Current Rating | 8A |
| Flammability Rating | UL94 V-0 |
| Height | 16.1mm |
| Housing Color | Green |
| Length | 11.1mm |
| Max Current Rating | 8A |
| Mount | Free Hanging, Cable |
| Number of Circuits | 20 |
| Number of Contacts | 20 |
| Number of Levels | 1 |
| Number of Positions | 20 |
| Number of Positions Per Level | 20 |
| Number of Rows | 1 |
| Orientation | Right Angle |
| Package Quantity | 50 |
| Packaging | Bulk |
| Pitch | 3.81mm |
| RoHS Compliant | Yes |
| Series | MC |
| Termination | Screw |
| Voltage | 300V |
| Voltage Rating | 160V |
| Weight | 3.456848oz |
| Width | 76.99mm |
| Wire Gauge (Max) | 30AWG |
| Wire Gauge (Min) | 14AWG |
Compliance
| RoHS | Compliant |
Datasheet
Phoenix Contact 1840353 Datasheet
Download the complete datasheet for Phoenix Contact 1840353 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

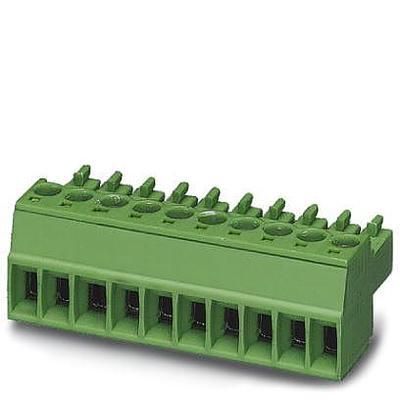

Product Images
