3-position, right-angle terminal block for cable mounting. Features a 3.5mm pitch and screw termination, rated for 8A and 160V. Constructed with a green polyamide housing and tin-plated contacts, it offers UL94 V-0 flammability. Supports wire gauges from 14AWG to 30AWG.
Voltage300V
Current8A
Voltage Rating160V
Current Rating8A
Quick Jump:
Technical Specifications
Phoenix Contact 1840379 technical specifications.
General
Approvals
UL, CSA, VDE, cULus, CB, EAC
Color
Green
Contact Material
Tin
Contact Plating
Tin
Current
8A
Current Rating
8A
Depth
16.1mm
Flammability Rating
UL94 V-0
Gender
Female
Height
11.1mm
Housing Color
Green
Insulation Material
Nylon
Lead Free
Lead Free
Length
10.5mm
Material
Polyamide
Max Current Rating
8A
Max Supply Voltage
160V
Mount
Free Hanging, Cable
Number of Circuits
3
Number of Contacts
3
Number of Levels
1
Number of Poles
3
Number of Positions
3
Number of Positions Per Level
3
Number of Rows
1
Orientation
Right Angle
Package Quantity
50
Packaging
Bulk
Pitch
3.5mm
Radiation Hardening
No
Reach SVHC Compliant
Unknown
RoHS Compliant
Yes
Series
MC
Termination
Screw
Voltage
300V
Voltage Rating
160V
Voltage Rating (AC)
160V
DC Rated Voltage
160V
Weight
3.456848oz
Width
16.1mm
Wire Gauge (Max)
30AWG
Wire Gauge (Min)
14AWG
Wire/Cable Gauge
28AWG
Compliance
RoHS
Compliant
Datasheet
Phoenix Contact 1840379 Datasheet
Download the complete datasheet for Phoenix Contact 1840379 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

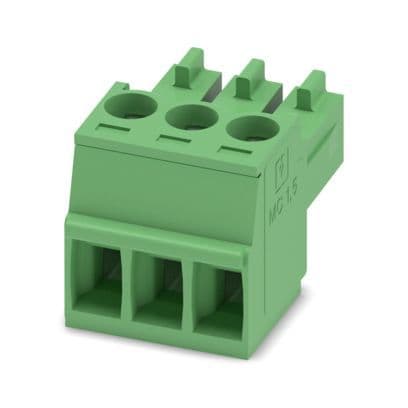

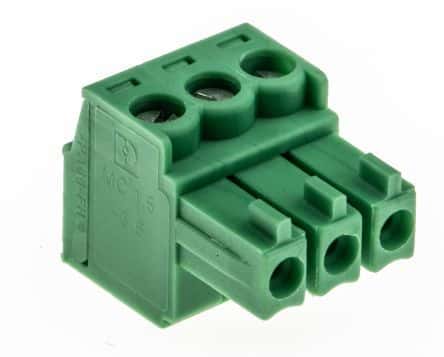

Product Images
