Barrier strip terminal block, 12 positions, 1 row, 1 deck, 3.5mm pitch, 8A current rating, 160V DC rated voltage, and 300V voltage rating. Features tin-plated contacts, polyamide insulation, and a green housing. Designed for screw termination, this component supports wire gauges from 14AWG to 28AWG and is UL94 V-0 flammability rated. Approvals include UL, CSA, VDE, cULus, CB, and EAC.
Voltage300V
Current8A
Voltage Rating160V
Current Rating8A
Quick Jump:
Technical Specifications
Phoenix Contact 1840463 technical specifications.
General
Approvals
UL, CSA, VDE, cULus, CB, EAC
Color
Green
Contact Material
Tin
Contact Plating
Tin
Current
8A
Current Rating
8A
Depth
16.1mm
Flammability Rating
UL94 V-0
Gender
Female
Height
16.1mm
Housing Color
Green
Insulation Material
Nylon
Lead Free
Lead Free
Length
42mm
Material
Polyamide
Max Current Rating
8A
Max Supply Voltage
160V
Mount
Free Hanging, Cable
Number of Circuits
12
Number of Contacts
12
Number of Levels
1
Number of Poles
12
Number of Positions
12
Number of Positions Per Level
12
Number of Rows
1
Orientation
Right Angle
Package Quantity
50
Packaging
Bulk
Pitch
3.5mm
Radiation Hardening
No
Reach SVHC Compliant
Unknown
RoHS Compliant
Yes
Series
MC
Termination
Screw
Voltage
300V
Voltage Rating
160V
DC Rated Voltage
160V
Weight
3.456848oz
Width
42mm
Wire Gauge (Max)
30AWG
Wire Gauge (Min)
14AWG
Wire/Cable Gauge
28AWG
Compliance
RoHS
Compliant
Datasheet
Phoenix Contact 1840463 Datasheet
Download the complete datasheet for Phoenix Contact 1840463 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

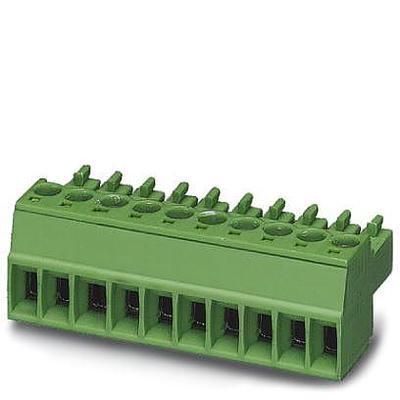

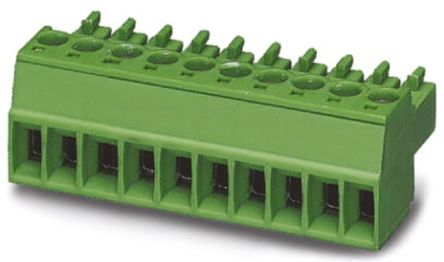

Product Images
