Wire-to-board header with 9 positions and a 3.81mm pitch. Features a 2-level, 1-row configuration with right-angle, through-hole termination. Rated for 8A current and 160V voltage, with a 300V maximum voltage. Constructed with tin-plated contacts and a green, UL94 V-0 rated housing.
Voltage300V
Current8A
Voltage Rating160V
Current Rating8A
Quick Jump:
Technical Specifications
Phoenix Contact 1842982 technical specifications.
General
| Color | Green |
| Contact Material | Tin |
| Contact Plating | Tin |
| Current | 8A |
| Current Rating | 8A |
| Flammability Rating | UL94 V-0 |
| Height | 26.2mm |
| Housing Color | Green |
| Length | 21.9mm |
| Mount | Through Hole |
| Number of Levels | 2 |
| Number of Positions | 9 |
| Number of Positions Per Level | 9 |
| Number of Rows | 1 |
| Package Quantity | 50 |
| Packaging | Bulk |
| Pitch | 0.15inch |
| RoHS Compliant | Yes |
| Series | MCD |
| Termination | Solder |
| Voltage | 300V |
| Voltage Rating | 160V |
| Weight | 0.472671oz |
| Width | 44.68mm |
Compliance
| RoHS | Compliant |
Datasheet
Phoenix Contact 1842982 Datasheet
Download the complete datasheet for Phoenix Contact 1842982 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

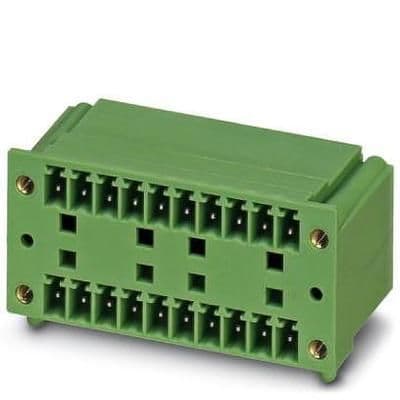

Product Images
