Barrier strip terminal block, 4 positions, 1 row, 1 level, 3.5mm pitch, right angle orientation. Features 8A current rating, 160V voltage rating, and accepts wire gauges from 14AWG to 30AWG. Constructed with polyamide housing and tin-plated contacts, this RoHS compliant component offers screw termination and is suitable for free hanging, panel, or cable mounting. Approvals include CSA, VDE, cULus, CB, and EAC.
Voltage300V
Current8A
Voltage Rating160V
Current Rating8A
Quick Jump:
Technical Specifications
Phoenix Contact 1847071 technical specifications.
General
| Approvals | CSA, VDE, cULus, CB, EAC |
| Color | Green |
| Contact Material | Tin |
| Contact Plating | Tin |
| Current | 8A |
| Current Rating | 8A |
| Depth | 16.1mm |
| Flammability Rating | UL94 V-0 |
| Gender | Female |
| Height | 16.1mm |
| Housing Color | Green |
| Lead Free | Lead Free |
| Length | 24.2mm |
| Material | Polyamide |
| Max Current Rating | 8A |
| Max Supply Voltage | 160V |
| Mount | Free Hanging, Panel, Cable |
| Number of Circuits | 4 |
| Number of Contacts | 4 |
| Number of Levels | 1 |
| Number of Positions | 4 |
| Number of Positions Per Level | 4 |
| Number of Rows | 1 |
| Orientation | Right Angle |
| Package Quantity | 50 |
| Packaging | Bulk |
| Pitch | 3.5mm |
| Reach SVHC Compliant | Unknown |
| RoHS Compliant | Yes |
| Series | MC |
| Termination | Screw |
| Voltage | 300V |
| Voltage Rating | 160V |
| Weight | 3.492122oz |
| Width | 24.3mm |
| Wire Gauge (Max) | 30AWG |
| Wire Gauge (Min) | 14AWG |
| Wire/Cable Gauge | 28AWG |
Compliance
| RoHS | Compliant |
Datasheet
Phoenix Contact 1847071 Datasheet
Download the complete datasheet for Phoenix Contact 1847071 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

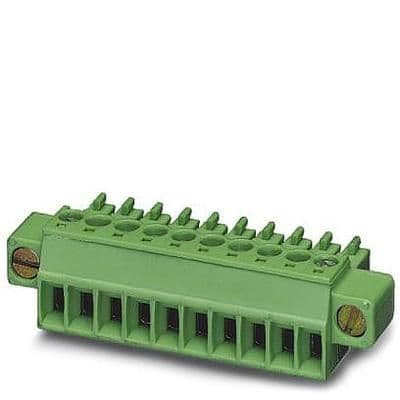

Product Images
