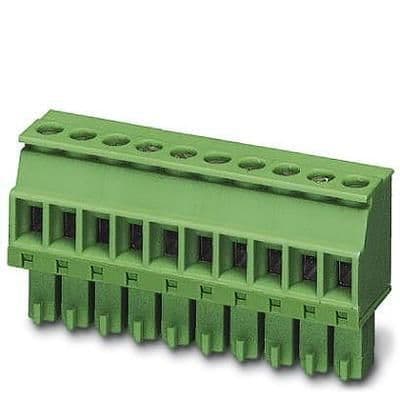

9-position, 1-level terminal block with 3.5mm pitch. Features straight, cable mount orientation and screw termination. Rated for 8A current and 160V DC, with a maximum supply voltage of 300V. Constructed with green polyamide insulation and tin-plated copper contacts. UL94 V-0 flammability rating and lead-free, RoHS compliant.
Voltage300V
Current8A
Voltage Rating160V
Current Rating8A
Quick Jump:
Technical Specifications
Phoenix Contact 1863220 technical specifications.
General
Approvals
UL, VDE, cULus, CB, EAC
Color
Green
Contact Material
Tin
Contact Plating
Tin
Current
8A
Current Rating
8A
Depth
10.4mm
Flammability Rating
UL94 V-0
Gender
Female
Height
12.5mm
Housing Color
Green
Insulation Material
Nylon
Lead Free
Lead Free
Length
32.3mm
Material
Polyamide
Max Current Rating
8A
Max Supply Voltage
160V
Mount
Free Hanging, Cable
Number of Circuits
9
Number of Contacts
9
Number of Levels
1
Number of Poles
9
Number of Positions
9
Number of Positions Per Level
9
Number of Rows
1
Orientation
Straight
Package Quantity
50
Packaging
Bulk
Pitch
3.5mm
Radiation Hardening
No
Reach SVHC Compliant
Unknown
RoHS Compliant
Yes
Series
MCVR
Termination
Screw
Voltage
300V
Voltage Rating
160V
DC Rated Voltage
160V
Weight
0.258558oz
Width
32.3mm
Wire Gauge (Max)
30AWG
Wire Gauge (Min)
14AWG
Wire/Cable Gauge
28AWG
Compliance
RoHS
Compliant
