8-position, single-level terminal block with 3.5mm pitch. Features tin-plated contacts and screw termination for wire gauges 14-30 AWG. Rated for 8A current and 300V voltage, with a UL94 V-0 flammability rating. Black housing, free-hanging mount, and lead-free construction.
Voltage300V
Current8A
Voltage Rating160V
Current Rating8A
Quick Jump:
Technical Specifications
Phoenix Contact 1883530 technical specifications.
General
| Color | Black |
| Contact Material | Tin |
| Contact Plating | Tin |
| Current | 8A |
| Current Rating | 8A |
| Flammability Rating | UL94 V-0 |
| Height | 16.1mm |
| Housing Color | Black |
| Lead Free | Lead Free |
| Length | 11.1mm |
| Mount | Free Hanging |
| Number of Levels | 1 |
| Number of Positions | 8 |
| Number of Positions Per Level | 8 |
| Number of Rows | 1 |
| Package Quantity | 50 |
| Packaging | Bulk |
| Pitch | 0.138inch |
| RoHS Compliant | Yes |
| Series | MC |
| Termination | Screw |
| Voltage | 300V |
| Voltage Rating | 160V |
| Weight | 0.185188oz |
| Width | 28mm |
| Wire Gauge (Max) | 30AWG |
| Wire Gauge (Min) | 14AWG |
Compliance
| RoHS | Compliant |
Datasheet
Phoenix Contact 1883530 Datasheet
Download the complete datasheet for Phoenix Contact 1883530 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

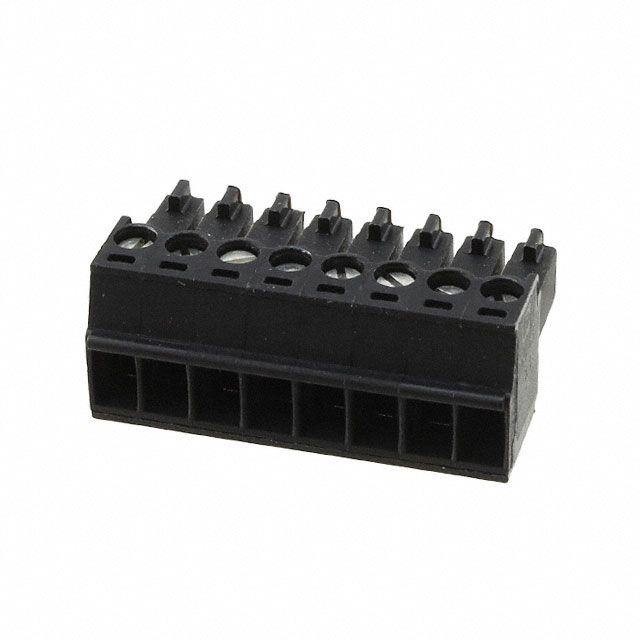

Product Images
